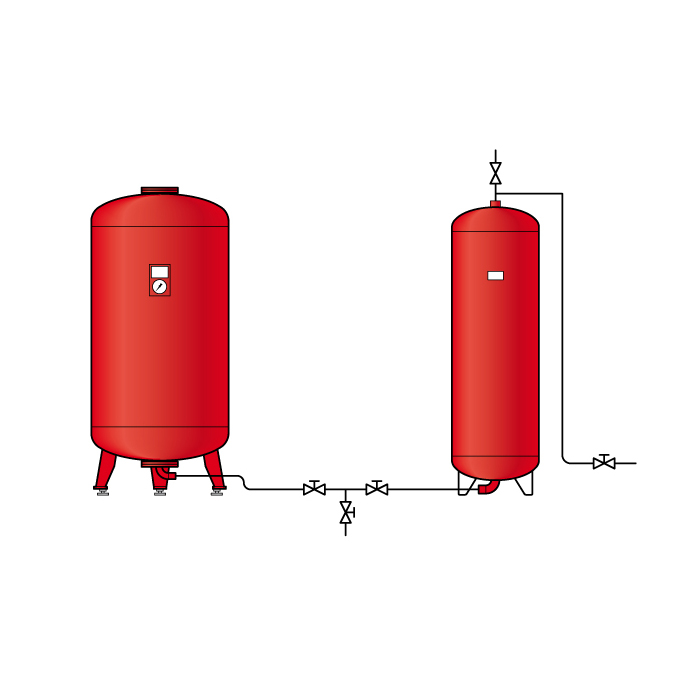

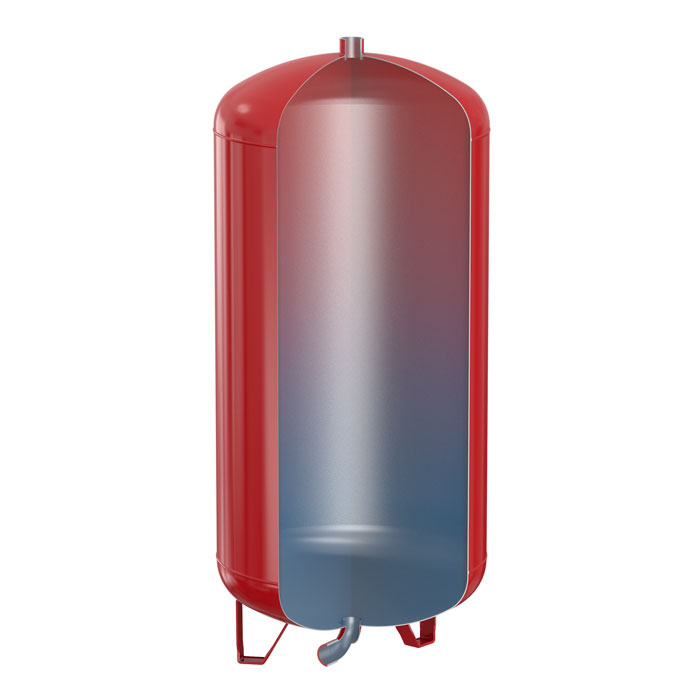

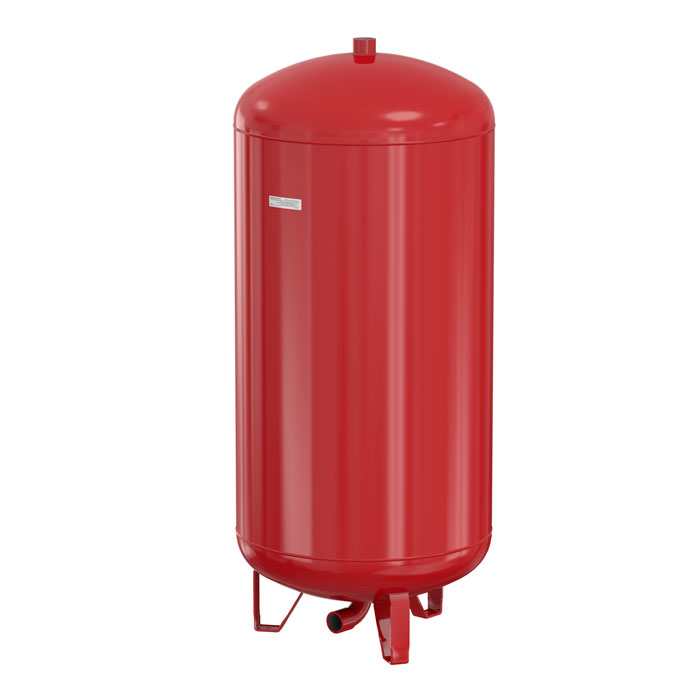

Pre-expansion tank
Code
MC000041Version
Group
Hydronic - Pressurisation and expansion (MG000033)Release
Drawing
Features
01 | Vertical positioning EF021399 - Logical | ||
02 | With legs EF022185 - Logical | ||
03 | a | Angle (°) EF008153 - Numeric | |
08 | C | Outer radius support (mm) EF010706 - Numeric | |
09 | D | Diameter (mm) EF000551 - Numeric | |
22 | H | Height (mm) EF000040 - Numeric | |
23 | H1 | Distance to centre connection (mm) EF010708 - Numeric | |
24 | H2 | Distance to bottom side vessel (mm) EF010873 - Numeric |
Features port 1
04 | a1 | Angle to first bolt hole (°) EF010524 - Numeric | |
06 | b1 | Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric | |
10 | D1 | Outer diameter of flange (mm) EF021531 - Numeric | |
12 | d2-1 | Diameter bolt hole (mm) EF021780 - Numeric | |
14 | d4-1 | Diameter sealing edge (mm) EF010527 - Numeric | |
16 | DN1 | Nominal diameter cold outlet EF021111 - Alphanumeric | |
18 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
20 | f1 | Thickness sealing edge (mm) EF010528 - Numeric | |
25 | k1 | Pitch circle (mm) EF021643 - Numeric | |
27 | n1 | Number of bolt holes EF021779 - Numeric | |
29 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
31 | L1 | Connection length (mm) EF022519 - Numeric | |
33 | P1 | Sleeve length (mm) EF010520 - Numeric | |
35 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
37 | Connection, cold outlet EF021112 - Alphanumeric |
Features port 2
05 | a2 | Angle to first bolt hole (°) EF010524 - Numeric | |
07 | b2 | Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric | |
11 | D2 | Outer diameter of flange (mm) EF021531 - Numeric | |
13 | d2-2 | Diameter bolt hole (mm) EF021780 - Numeric | |
15 | d4-2 | Diameter sealing edge (mm) EF010527 - Numeric | |
17 | DN2 | Nominal diameter hot inlet EF021108 - Alphanumeric | |
19 | Do2 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
21 | f2 | Thickness sealing edge (mm) EF010528 - Numeric | |
26 | k2 | Pitch circle (mm) EF021643 - Numeric | |
28 | n2 | Number of bolt holes EF021779 - Numeric | |
30 | Q2 | Length gusset/thread (mm) EF010521 - Numeric | |
32 | L2 | Connection length (mm) EF022519 - Numeric | |
34 | P2 | Sleeve length (mm) EF010520 - Numeric | |
36 | s2 | Wall thickness connection (mm) EF010546 - Numeric | |
38 | Connection, hot inlet EF021110 - Alphanumeric |
Related productclasses
Synonyms
Pre-expansion tank
