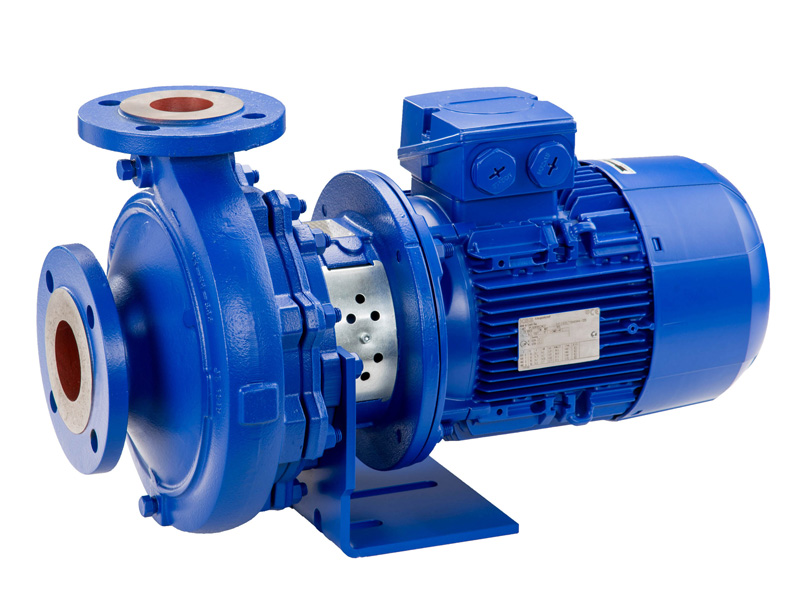

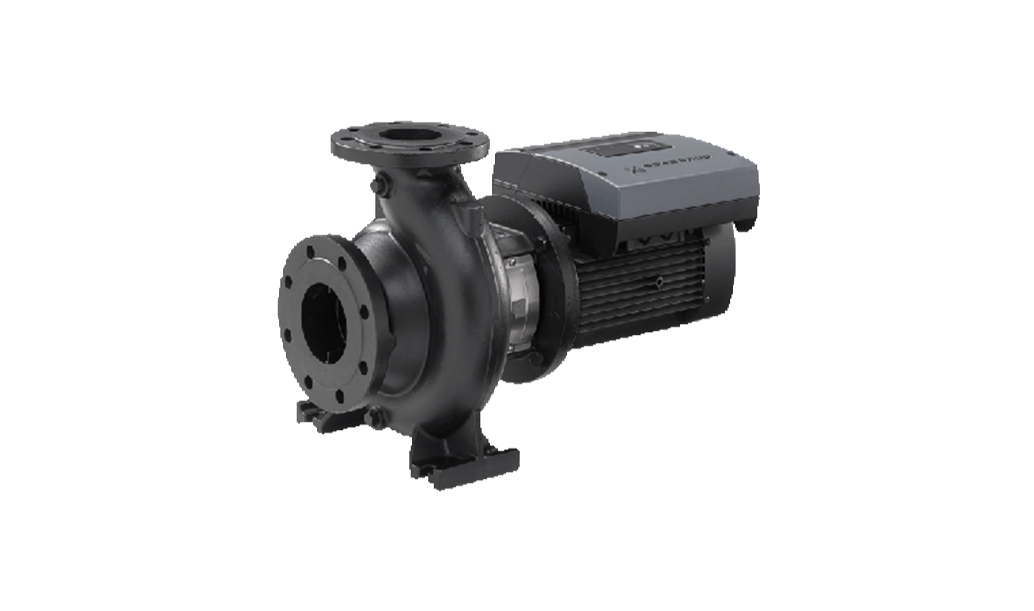

Block pump (electrical) MC000046
Features 41
Class features
- 1
Type of driveEF001422
Choose one value
Electrical - 2
Angle electrical cabinetEF010754
A number in ° · a in drawing
- 13
Diameter motorEF010724
A number in mm · DM in drawing
- 20
Height of suction endEF023094
A number in mm · H1 in drawing
- 21
Diameter pump housingEF010740
A number in mm · HD in drawing
- 26
Length pump housingEF010756
A number in mm · Le1 in drawing
- 27
Centre connection to end motorEF010742
A number in mm · Le2 in drawing
- 28
Width electrical cabinetEF010751
A number in mm · Le4 in drawing
- 29
Length electrical cabinetEF010729
A number in mm · Le5 in drawing
- 30
Centre pump to beginning motorEF010757
A number in mm · Le6 in drawing
- 31
Centre pump to top side electrical cabinetEF010758
A number in mm · Le7 in drawing
- 32
Position control panelEF010733
Choose one value · Lp in drawing
Top sideLeftRightBottom side - 33
Number of supportsEF010759
A number · n in drawing
Port 1
- 3
Angle to first bolt holeEF010524
A number in ° · a1 in drawing
- 5
Thickness flange (incl. sealing edge)EF010525
A number in mm · b1 in drawing
- 7
Outer diameter of flangeEF021531
A number in mm · D1 in drawing
- 9
Diameter bolt holeEF021780
A number in mm · d2-1 in drawing
- 11
Diameter sealing edgeEF010527
A number in mm · d4-1 in drawing
- 14
Nominal diameter connection 1EF023193
Choose one value · DN1 in drawing
1/8 inch (6)DN 61/4 inch (8)DN 83/8 inch (10)DN 10DN 121/2 inch (15)DN 15DN 18 - 16
Outer pipe diameter connectionEF020208
A number in mm · Do1 in drawing
- 18
Thickness sealing edgeEF010528
A number in mm · f1 in drawing
- 22
Pitch circleEF021643
A number in mm · k1 in drawing
- 24
Connection lengthEF022519
A number in mm · L1 in drawing
- 34
Number of bolt holesEF021779
A number · n1 in drawing
- 36
Length gusset/threadEF010521
A number in mm · Q1 in drawing
- 38
Working lengthEF006318
A number in mm · Z1 in drawing
- 40
Connection 1EF000321
Choose one value
External thread flare (UNF)External thread cylindrical BSPP-G (ISO 228-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread metricExternal thread conical (NPT)FlangeGrooveWelding connectionGlued endSoldered end
Port 2
- 4
Angle to first bolt holeEF010524
A number in ° · a2 in drawing
- 6
Thickness flange (incl. sealing edge)EF010525
A number in mm · b2 in drawing
- 8
Outer diameter of flangeEF021531
A number in mm · D2 in drawing
- 10
Diameter bolt holeEF021780
A number in mm · d2-2 in drawing
- 12
Diameter sealing edgeEF010527
A number in mm · d4-2 in drawing
- 15
Nominal diameter connection 2EF020052
Choose one value · DN2 in drawing
1/8 inch (6)DN 61/4 inch (8)DN 83/8 inch (10)DN 10DN 121/2 inch (15)DN 15DN 18 - 17
Outer pipe diameter connectionEF020208
A number in mm · Do2 in drawing
- 19
Thickness sealing edgeEF010528
A number in mm · f2 in drawing
- 23
Pitch circleEF021643
A number in mm · k2 in drawing
- 25
Connection lengthEF022519
A number in mm · L2 in drawing
- 35
Number of bolt holesEF021779
A number · n2 in drawing
- 37
Length gusset/threadEF010521
A number in mm · Q2 in drawing
- 39
Working lengthEF006318
A number in mm · Z2 in drawing
- 41
Connection 2EF000322
Choose one value
External thread flare (UNF)External thread cylindrical BSPP-G (ISO 228-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread metricExternal thread conical (NPT)FlangeGrooveWelding connectionGlued endSoldered end
Codes after each name are ETIM feature codes. Use them, not the names, in product data.
