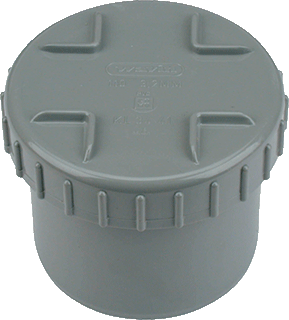

End piece with screw cover (plastic)
Code
MC000048Version
2
Group
Piping - Pipe fittings, flanges and adaptors (MG000023)Release
Drawing
Features
01 | D | Diameter screw cap (mm) EF010898 - Numeric | |
05 | H | Height screw cap (mm) EF010899 - Numeric |
Features port 1
02 | DN1 | Nominal diameter connection 1 EF023193 - Alphanumeric | |
03 | Do1 | Outer pipe diameter connection 1 (mm) EF020122 - Numeric | |
04 | Dr1 | Rim diameter (mm) EF010037 - Numeric | |
06 | j1 | Distance to edge (mm) EF010519 - Numeric | |
07 | L1 | Length (mm) EF001438 - Numeric | |
08 | P1 | Sleeve length (mm) EF010520 - Numeric | |
09 | s1 | Wall thickness, connection 1 (mm) EF021603 - Numeric | |
10 | t1 | Rim thickness (mm) EF010038 - Numeric | |
11 | W1 | Fusion length (mm) EF010761 - Numeric | |
12 | Z1 | Working length (mm) EF006318 - Numeric | |
13 | Connection 1 EF000321 - Alphanumeric |
Related productclasses
Synonyms
End piece with screw cover (plastic)
Fitting with 1 connection
