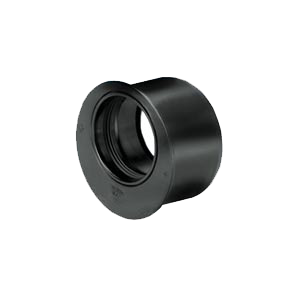

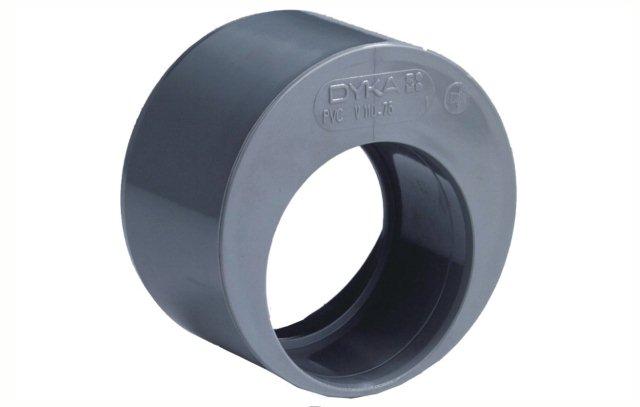

Eccentric insert sleeve
Code
MC000049Version
3
Group
Piping - Pipe fittings, flanges and adaptors (MG000023)Release
Drawing
Features
01 | Shape EF000051 - Alphanumeric | ||
02 | Model EF000010 - Alphanumeric | ||
03 | Reducing EF022617 - Logical | ||
04 | Eccentric EF020055 - Logical | ||
09 | E | Distance eccentricity (mm) EF010762 - Numeric |
Features port 1
05 | DN1 | Nominal diameter connection 1 EF023193 - Alphanumeric | |
07 | Do1 | Outer pipe diameter connection 1 (mm) EF020122 - Numeric | |
10 | Z1 | Working length connection 1 (mm) EF020153 - Numeric | |
12 | Connection 1 EF000321 - Alphanumeric |
Features port 2
06 | DN2 | Nominal diameter connection 2 EF020052 - Alphanumeric | |
08 | Do2 | Outer pipe diameter connection 2 (mm) EF020123 - Numeric | |
11 | Z2 | Working length connection 2 (mm) EF020154 - Numeric | |
13 | Connection 2 EF000322 - Alphanumeric |
Related productclasses
Synonyms
Eccentric insert sleeve
Eccentric insert sleeve (plastic)
Eccentric sleeve
Fitting with 2 connections
