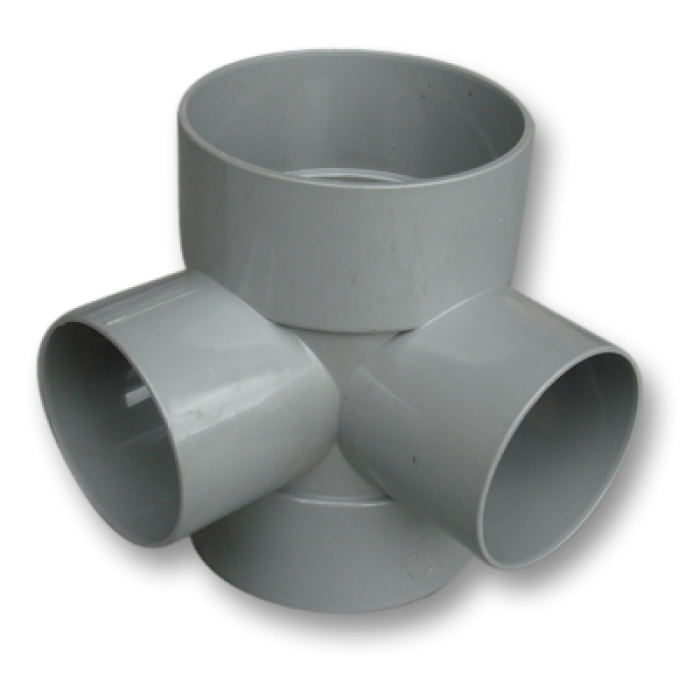

Right-angled double T-piece MC000054
Features 34
Port 1
- 1
Connection 1EF000321
Choose one value
Glued endSlide sleeveGlued sleevePlastic welded end - 7
Nominal diameter connection 1EF023193
Choose one value · DN1 in drawing
DN 32DN 40DN 50DN 75DN 90DN 110DN 125DN 160DN 200DN 250 - 11
Outer pipe diameter connection 1EF020122
A number in mm · Do1 in drawing
- 15
Rim diameterEF010037
A number in mm · Dr1 in drawing
- 19
Distance to sleeve rimEF010547
A number in mm · j1 in drawing
- 23
Length of connection 1EF020151
A number in mm · L1 in drawing
- 27
Rim thicknessEF010038
A number in mm · t1 in drawing
- 31
Working length connection 1EF020153
A number in mm · Z1 in drawing
Port 2
- 2
Connection 2EF000322
Choose one value
Glued endSlide sleeveGlued sleevePlastic welded end - 8
Nominal diameter connection 2EF020052
Choose one value · DN2 in drawing
DN 32DN 40DN 50DN 75DN 90DN 110DN 125DN 160DN 200DN 250 - 12
Outer pipe diameter connection 2EF020123
A number in mm · Do2 in drawing
- 16
Rim diameterEF010037
A number in mm · Dr2 in drawing
- 20
Distance to sleeve rimEF010547
A number in mm · j2 in drawing
- 24
Length of connection 2EF020152
A number in mm · L2 in drawing
- 28
Rim thicknessEF010038
A number in mm · t2 in drawing
- 32
Working length connection 2EF020154
A number in mm · Z2 in drawing
Port 3
- 3
Connection 3EF020065
Choose one value
Glued endSlide sleeveGlued sleevePlastic welded end - 5
Angle connectionEF010747
A number in ° · a3 in drawing
- 9
Nominal diameter connection 3EF020053
Choose one value · DN3 in drawing
DN 32DN 40DN 50DN 75DN 90DN 110DN 125DN 160DN 200DN 250 - 13
Outer pipe diameter connection 3EF020124
A number in mm · Do3 in drawing
- 17
Rim diameterEF010037
A number in mm · Dr3 in drawing
- 21
Distance to sleeve rimEF010547
A number in mm · j3 in drawing
- 25
Length of connection 3EF020159
A number in mm · L3 in drawing
- 29
Rim thicknessEF010038
A number in mm · t3 in drawing
- 33
Working length connection 3EF020160
A number in mm · Z3 in drawing
Port 4
- 4
Connection 4EF020066
Choose one value
Glued endSlide sleeveGlued sleevePlastic welded end - 6
Angle connectionEF010747
A number in ° · a4 in drawing
- 10
Nominal diameter connection 4EF020054
Choose one value · DN4 in drawing
DN 32DN 40DN 50DN 75DN 90DN 110DN 125DN 160DN 200DN 250 - 14
Outer pipe diameter connection 4EF020125
A number in mm · Do4 in drawing
- 18
Rim diameterEF010037
A number in mm · Dr4 in drawing
- 22
Distance to sleeve rimEF010547
A number in mm · j4 in drawing
- 26
Length of connection 4EF020169
A number in mm · L4 in drawing
- 30
Rim thicknessEF010038
A number in mm · t4 in drawing
- 34
Working length connection 4EF020168
A number in mm · Z4 in drawing
Codes after each name are ETIM feature codes. Use them, not the names, in product data.
