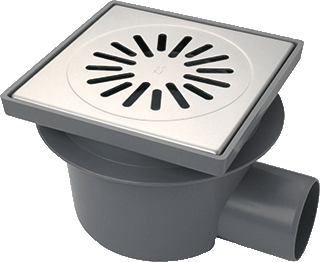

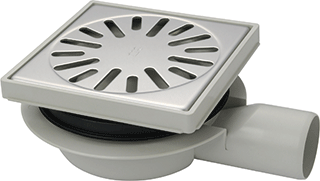

Floor drain (round) side outlet
Code
MC000056Version
3
Group
Water - Drainage and wastewater systems (MG000015)Release
Drawing
Features
01 | Direction of outlet EF022330 - Alphanumeric | ||
02 | B | Width grid (mm) EF022332 - Numeric | |
03 | D | Diameter grid (mm) EF022334 - Numeric | |
04 | d1 | Diameter floor drain (mm) EF010900 - Numeric | |
08 | H | Total height (mm) EF001761 - Numeric | |
12 | L | Length grid (mm) EF022333 - Numeric |
Features port 1
05 | DN1 | Nominal diameter EF023191 - Alphanumeric | |
06 | Do1 | Outer pipe diameter (mm) EF006272 - Numeric | |
07 | Dr1 | Rim diameter (mm) EF010037 - Numeric | |
09 | h1 | Height to centre connection (mm) EF010771 - Numeric | |
10 | j1 | Distance to sleeve rim (mm) EF010547 - Numeric | |
11 | k1 | Max. shorten length (mm) EF010767 - Numeric | |
13 | L1 | Connection length (mm) EF022519 - Numeric | |
14 | P1 | Sleeve length (mm) EF010520 - Numeric | |
15 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
16 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
17 | t1 | Rim thickness (mm) EF010038 - Numeric | |
18 | W1 | Fusion length (mm) EF010761 - Numeric | |
19 | Connection EF000443 - Alphanumeric |
Related productclasses
Synonyms
Floor drain (round) side outlet
Floor drain side outlet
Floor drain with 1 connection
