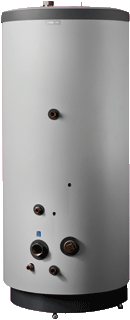

Boiler round indirectly heated (wall positioning, side connection) MC000065

Published
Hydronic - Domestic home water heaters and storage MG000045

Features 60

Class features

  1. 1

    Wall set-upEF020359

    Yes or no

    YesNo
  2. 2

    AngleEF008153

    A number in ° · a in drawing

  3. 8

    Bracket distanceEF010822

    A number in mm · BA in drawing

  4. 13

    DiameterEF000551

    A number in mm · D in drawing

  5. 35

    HeightEF000040

    A number in mm · H in drawing

  6. 36

    Height operating elementEF022273

    A number in mm · H1 in drawing

Port 1

  1. 3

    Angle connectionEF010747

    A number in ° · a1 in drawing

  2. 9

    Height screw glandEF010040

    A number in mm · C1 in drawing

  3. 14

    Nominal diameter primary connectionEF010882

    Choose one value · DN1 in drawing

    1/8 inch (6)1/4 inch (8)3/8 inch (10)1/2 inch (15)3/4 inch (20)1 inch (25)1 1/8 inch1 1/4 inch (32)1 5/16 inch1 3/8 inch
  4. 18

    Outer pipe diameter primary connectionEF022025

    A number in mm · Do1 in drawing

  5. 22

    Rim diameterEF010037

    A number in mm · Dr1 in drawing

  6. 26

    Height to connectionEF010721

    A number in mm · Dz1 in drawing

  7. 31

    Height screw gland edgeEF010516

    A number in mm · g1 in drawing

  8. 37

    Connection lengthEF022519

    A number in mm · L1 in drawing

  9. 41

    Sleeve length (no longer used)EF010520

    A number in mm · P1 in drawing

  10. 45

    Length gusset/threadEF010521

    A number in mm · Q1 in drawing

  11. 49

    Wall thickness connectionEF010546

    A number in mm · s1 in drawing

  12. 53

    Wrench widthEF000177

    A number in mm · SLW1 in drawing

  13. 57

    Primary connectionEF022024

    Choose one value

    Internal thread conical (NPT)Internal thread flare (UNF)Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread metricExternal thread conical (NPT)External thread flare (UNF)External thread cylindrical BSPP-G (ISO 228-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread metric

Port 2

  1. 4

    Angle connectionEF010747

    A number in ° · a2 in drawing

  2. 10

    Height screw glandEF010040

    A number in mm · C2 in drawing

  3. 15

    Nominal diameter cold tap waterEF020013

    Choose one value · DN2 in drawing

    1/8 inch (6)1/4 inch (8)3/8 inch (10)1/2 inch (15)3/4 inch (20)1 inch (25)1 1/8 inch1 1/4 inch (32)1 5/16 inch1 3/8 inch
  4. 19

    Outer pipe diameter cold tap waterEF020499

    A number in mm · Do2 in drawing

  5. 23

    Rim diameterEF010037

    A number in mm · Dr2 in drawing

  6. 27

    Height to connectionEF010721

    A number in mm · Dz2 in drawing

  7. 32

    Height screw gland edgeEF010516

    A number in mm · g2 in drawing

  8. 38

    Connection lengthEF022519

    A number in mm · L2 in drawing

  9. 42

    Sleeve length (no longer used)EF010520

    A number in mm · P2 in drawing

  10. 46

    Length gusset/threadEF010521

    A number in mm · Q2 in drawing

  11. 50

    Wall thickness connectionEF010546

    A number in mm · s2 in drawing

  12. 54

    Wrench widthEF000177

    A number in mm · SLW2 in drawing

  13. 58

    Cold tap water connectionEF021386

    Choose one value

    Internal thread conical (NPT)Internal thread flare (UNF)Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread metricExternal thread conical (NPT)External thread flare (UNF)External thread cylindrical BSPP-G (ISO 228-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread metric

Port 3

  1. 5

    Angle connectionEF010747

    A number in ° · a3 in drawing

  2. 11

    Height screw glandEF010040

    A number in mm · C3 in drawing

  3. 16

    Nominal diameter hot tap waterEF010896

    Choose one value · DN3 in drawing

    1/8 inch (6)1/4 inch (8)3/8 inch (10)1/2 inch (15)3/4 inch (20)1 inch (25)1 1/8 inch1 1/4 inch (32)1 5/16 inch1 3/8 inch
  4. 20

    Outer pipe diameter hot tap waterEF020504

    A number in mm · Do3 in drawing

  5. 24

    Rim diameterEF010037

    A number in mm · Dr3 in drawing

  6. 28

    Height to connectionEF010721

    A number in mm · Dz3 in drawing

  7. 33

    Height screw gland edgeEF010516

    A number in mm · g3 in drawing

  8. 39

    Connection lengthEF022519

    A number in mm · L3 in drawing

  9. 43

    Sleeve length (no longer used)EF010520

    A number in mm · P3 in drawing

  10. 47

    Length gusset/threadEF010521

    A number in mm · Q3 in drawing

  11. 51

    Wall thickness connectionEF010546

    A number in mm · s3 in drawing

  12. 55

    Wrench widthEF000177

    A number in mm · SLW3 in drawing

  13. 59

    Hot tap water connectionEF021387

    Choose one value

    Internal thread conical (NPT)Internal thread flare (UNF)Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread metricExternal thread conical (NPT)External thread flare (UNF)External thread cylindrical BSPP-G (ISO 228-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread metric

Port 4

  1. 6

    Angle connectionEF010747

    A number in ° · a4 in drawing

  2. 12

    Height screw glandEF010040

    A number in mm · C4 in drawing

  3. 17

    Nominal diameter primary connectionEF010882

    Choose one value · DN4 in drawing

    1/8 inch (6)1/4 inch (8)3/8 inch (10)1/2 inch (15)3/4 inch (20)1 inch (25)1 1/8 inch1 1/4 inch (32)1 5/16 inch1 3/8 inch
  4. 21

    Outer pipe diameter primary connectionEF022025

    A number in mm · Do4 in drawing

  5. 25

    Rim diameterEF010037

    A number in mm · Dr4 in drawing

  6. 29

    Height to connectionEF010721

    A number in mm · Dz4 in drawing

  7. 34

    Height screw gland edgeEF010516

    A number in mm · g4 in drawing

  8. 40

    Connection lengthEF022519

    A number in mm · L4 in drawing

  9. 44

    Sleeve length (no longer used)EF010520

    A number in mm · P4 in drawing

  10. 48

    Length gusset/threadEF010521

    A number in mm · Q4 in drawing

  11. 52

    Wall thickness connectionEF010546

    A number in mm · s4 in drawing

  12. 56

    Wrench widthEF000177

    A number in mm · SLW4 in drawing

  13. 60

    Primary connectionEF022024

    Choose one value

    Internal thread conical (NPT)Internal thread flare (UNF)Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread metricExternal thread conical (NPT)External thread flare (UNF)External thread cylindrical BSPP-G (ISO 228-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread metric

Port 5

  1. 7

    Angle connectionEF010747

    A number in ° · a5 in drawing

  2. 30

    Height to connectionEF010721

    A number in mm · Dz5 in drawing

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
