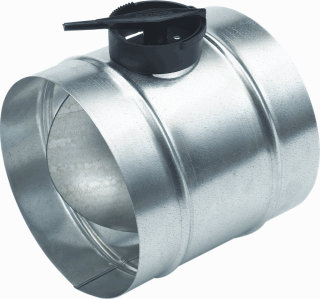

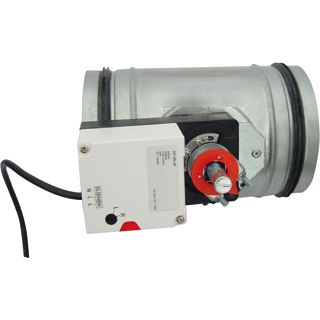

Control valve round air duct
Code
MC000091Version
3
Group
Ventilation and flue gas components (MG000043)Release
Drawing
Features
01 | Operation EF002147 - Alphanumeric | ||
02 | D | Outer diameter (mm) EF000015 - Numeric | |
05 | E | Width (mm) EF000008 - Numeric | |
06 | H | Height (mm) EF000040 - Numeric | |
07 | H1 | Height 1 (mm) EF010005 - Numeric | |
14 | M | Diameter (mm) EF000551 - Numeric | |
15 | s | Plate thickness (mm) EF006112 - Numeric | |
16 | W | Width 1 (mm) EF023087 - Numeric | |
17 | Y | Height operating element (mm) EF022273 - Numeric |
Features port 1
03 | DN1 | Nominal duct diameter (mm) EF020311 - Numeric | |
08 | IL1 | Insert length (mm) EF020279 - Numeric | |
10 | k1 | Rim thickness (mm) EF010038 - Numeric | |
12 | L1 | Length of connection 1 (mm) EF020151 - Numeric | |
18 | Z1 | Working length connection 1 (mm) EF020153 - Numeric | |
20 | Connection 1 EF000321 - Alphanumeric |
Features port 2
04 | DN2 | Nominal duct diameter (mm) EF020311 - Numeric | |
09 | IL2 | Insert length (mm) EF020279 - Numeric | |
11 | k2 | Rim thickness (mm) EF010038 - Numeric | |
13 | L2 | Length of connection 2 (mm) EF020152 - Numeric | |
19 | Z2 | Working length connection 2 (mm) EF020154 - Numeric | |
21 | Connection 2 EF000322 - Alphanumeric |
Related productclasses
Synonyms
Control valve round air duct
Control valve, round air duct
