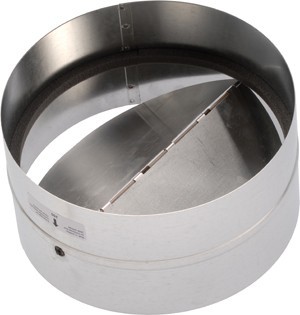

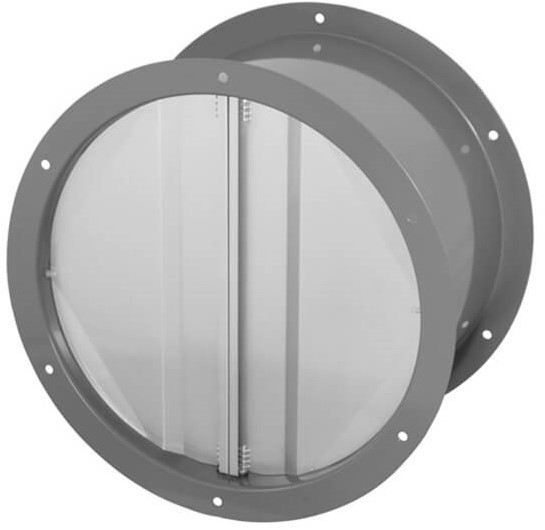

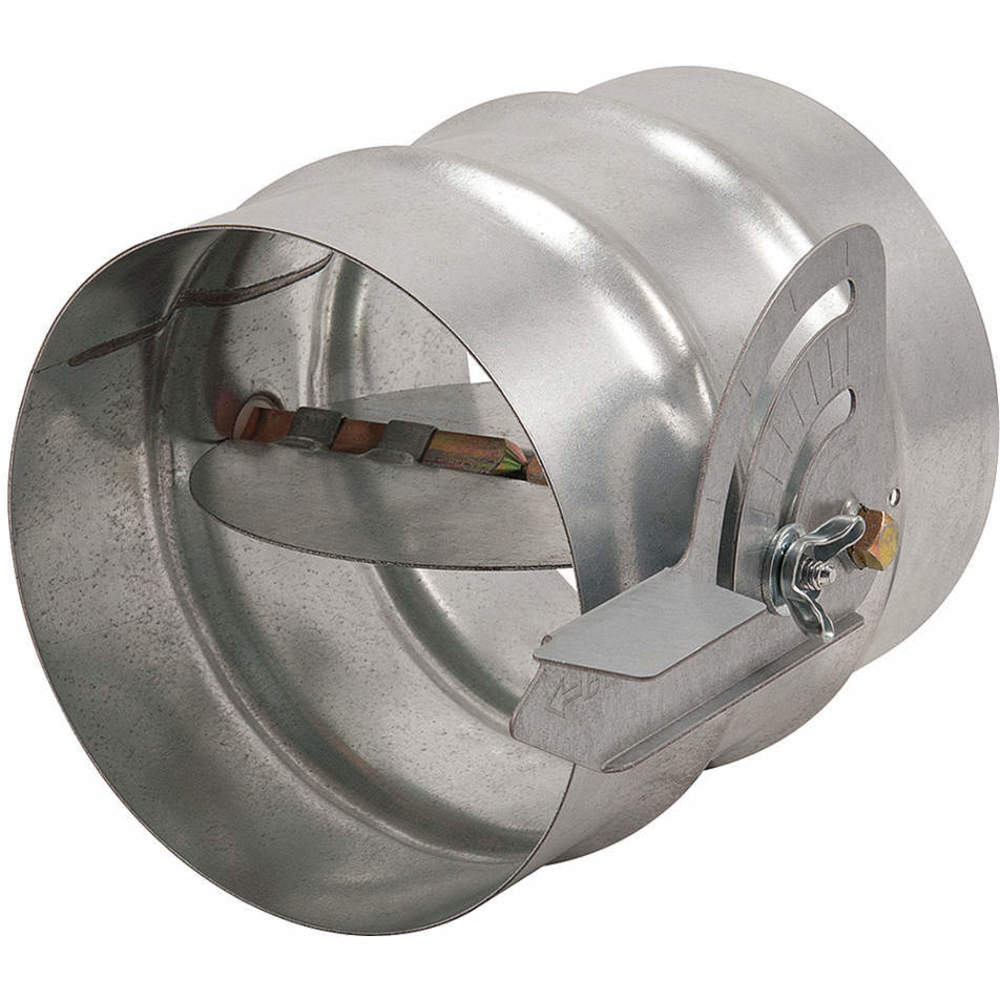

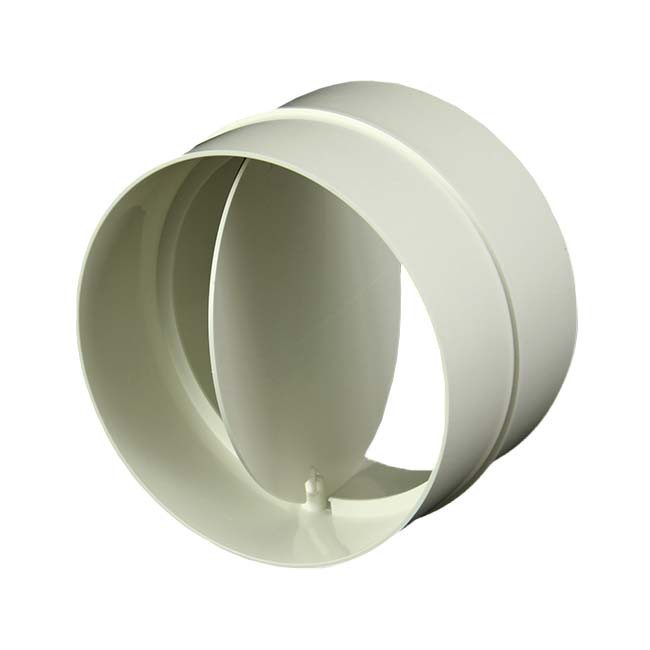

Non-return valve round air duct
Code
MC000092Version
3
Group
Ventilation and flue gas components (MG000043)Release
Drawing
Features
01 | D | Outer diameter (mm) EF000015 - Numeric | |
10 | s | Plate thickness (mm) EF006112 - Numeric |
Features port 1
02 | DN1 | Nominal duct diameter (mm) EF020311 - Numeric | |
04 | IL1 | Insert length (mm) EF020279 - Numeric | |
06 | k1 | Rim thickness (mm) EF010038 - Numeric | |
08 | L1 | Length of connection 1 (mm) EF020151 - Numeric | |
11 | Z1 | Working length connection 1 (mm) EF020153 - Numeric | |
13 | Connection EF000443 - Alphanumeric |
Features port 2
03 | DN2 | Nominal duct diameter (mm) EF020311 - Numeric | |
05 | IL2 | Insert length (mm) EF020279 - Numeric | |
07 | k2 | Rim thickness (mm) EF010038 - Numeric | |
09 | L2 | Length of connection 2 (mm) EF020152 - Numeric | |
12 | Z2 | Working length connection 2 (mm) EF020154 - Numeric | |
14 | Connection EF000443 - Alphanumeric |
Related productclasses
Synonyms
Non-return valve round air duct
Non-return valve, round air duct
