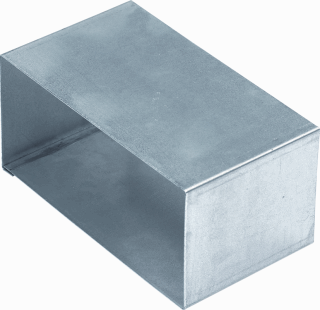

Coupling piece embedding duct MC000095

A connector fitting for joining sections of embedding duct.

Published
Ventilation - Ducts and duct fittings MG000003

Features 9

Class features

  1. 1

    Nominal duct heightEF020313

    A number in mm · HN in drawing

  2. 4

    LengthEF001438

    A number in mm · L in drawing

  3. 5

    Plate thicknessEF006112

    A number in mm · s in drawing

  4. 6

    Working lengthEF006318

    A number in mm · Z in drawing

  5. 7

    Nominal duct widthEF020312

    A number in mm · WN in drawing

Port 1

  1. 2

    Insert lengthEF020279

    A number in mm · IL1 in drawing

  2. 8

    Connection 1EF000321

    Choose one value

    Insert end

Port 2

  1. 3

    Insert lengthEF020279

    A number in mm · IL2 in drawing

  2. 9

    Connection 2EF000322

    Choose one value

    Insert end
