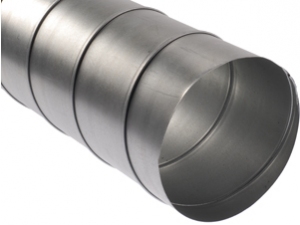

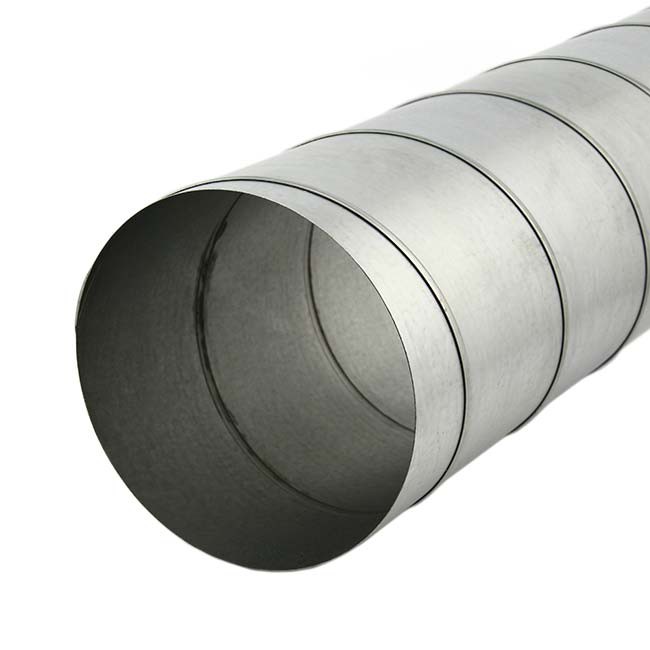

Round air duct MC000096
A straight round-section component of an air duct system for ventilation airflow.
Features 16
Class features
- 1
ModelEF000010
Choose one value
Uninsulated ductInternally insulated ductExternally insulated ductDouble-walled ductHard foam duct (full insulation) - 14
Insulation thicknessEF004810
A number in mm · Si in drawing
Port 1
- 2
ConnectionEF000443
Choose one value
Duct endInsert endFlangeGlued sleeveGlued endBeaded edge - 4
Thickness flangeEF020225
A number in mm · b1 in drawing
- 6
Duct diameterEF021896
A number in mm · Dd1 in drawing
- 8
Flange widthEF023161
A number in mm · FH1 in drawing
- 10
Connection lengthEF022519
A number in mm · L1 in drawing
- 12
Number of bolt holesEF021779
A number · n1 in drawing
- 15
Working length connectionEF016476
A number in mm · Z1 in drawing
Port 2
- 3
ConnectionEF000443
Choose one value
Duct endInsert endFlangeGlued sleeveGlued endBeaded edge - 5
Thickness flangeEF020225
A number in mm · b2 in drawing
- 7
Duct diameterEF021896
A number in mm · Dd2 in drawing
- 9
Flange widthEF023161
A number in mm · FH2 in drawing
- 11
Connection lengthEF022519
A number in mm · L2 in drawing
- 13
Number of bolt holesEF021779
A number · n2 in drawing
- 16
Working length connectionEF016476
A number in mm · Z2 in drawing
Codes after each name are ETIM feature codes. Use them, not the names, in product data.
