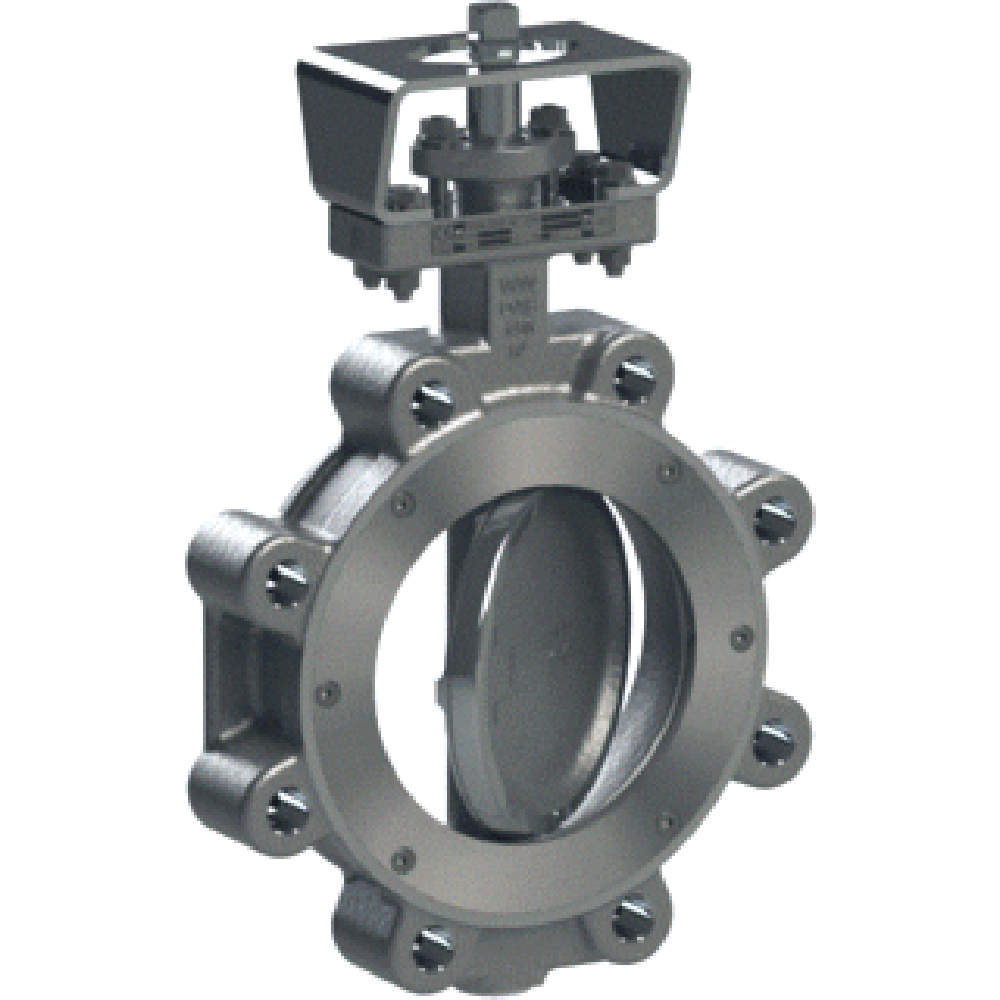

Butterfly valve flange connection (without operation element)

Code

MC000099

Hydronic - Valves and control components (MG000042)

Drawing

Features

	23	U	Diameter operating surface (mm) EF010522 - Numeric
	24	V	Distance to operating element (mm) EF010523 - Numeric

Features port 1

01	a1	Angle to first bolt hole (°) EF010524 - Numeric
03	b1	Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric
05	D1	Outer diameter of flange (mm) EF021531 - Numeric
07	d2-1	Diameter bolt hole (mm) EF021780 - Numeric
09	d4-1	Diameter sealing edge (mm) EF010527 - Numeric
11	DN1	Nominal diameter EF023191 - Alphanumeric
13	Do1	Outer pipe diameter connection (mm) EF020208 - Numeric
15	f1	Thickness sealing edge (mm) EF010528 - Numeric
17	k1	Pitch circle (mm) EF021643 - Numeric
19	L1	Length of connection 1 (mm) EF020151 - Numeric
21	n1	Number of bolt holes EF021779 - Numeric
25	Z1	Working length connection 1 (mm) EF020153 - Numeric
27		Port connection code EF010809 - Numeric
30		Connection 1 EF000321 - Alphanumeric

Features port 2

02	a2	Angle to first bolt hole (°) EF010524 - Numeric
04	b2	Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric
06	D2	Outer diameter of flange (mm) EF021531 - Numeric
08	d2-2	Diameter bolt hole (mm) EF021780 - Numeric
10	d4-2	Diameter sealing edge (mm) EF010527 - Numeric
12	DN2	Nominal diameter EF023191 - Alphanumeric
14	Do2	Outer pipe diameter connection (mm) EF020208 - Numeric
16	f2	Thickness sealing edge (mm) EF010528 - Numeric
18	k2	Pitch circle (mm) EF021643 - Numeric
20	L2	Length of connection 2 (mm) EF020152 - Numeric
22	n2	Number of bolt holes EF021779 - Numeric
26	Z2	Working length connection 2 (mm) EF020154 - Numeric
28		Port connection code EF010809 - Numeric
31		Connection 2 EF000322 - Alphanumeric

Features port 3

Port connection code

EF010809 - Numeric

Related productclasses

Synonyms

Butterfly valve flange connection (with operation element)

Butterfly valve flange connection (without operation element)

Throttle valve
