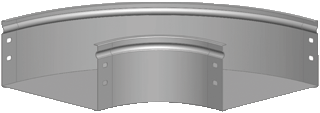

    Bend for cable tray horizontal 90°

    Code

    MC000102

    Version

    3

    Group

    Cable carrying systems (MG000009)

    Release

    nl 2BA se RSK be InstallData fi Sahkonumerot
    Drawing
    Dimensional drawing
    Features

    01

    Change of direction

    EF005210 - Alphanumeric

    02

    Construction type

    EF000767 - Alphanumeric

    03

    Inner bend model

    EF024544 - Alphanumeric

    04

    Outer bend model

    EF024543 - Alphanumeric

    05

    Angle

    EF001218 - Alphanumeric

    06

    Inner height (mm)

    EF010059 - Numeric

    07

    Suitable for cable tray height (mm)

    EF004822 - Numeric

    12

    Length push through section (mm)

    EF010859 - Numeric

    15

    Material thickness (mm)

    EF000386 - Numeric

    16

    Inner width (mm)

    EF010004 - Numeric

    17

    Suitable for cable tray width (mm)

    EF004820 - Numeric
    Features port 1

    08

    Insert length (mm)

    EF020279 - Numeric

    10

    Connection length (mm)

    EF022519 - Numeric

    13

    Length straight (mm)

    EF010860 - Numeric
    Features port 2

    09

    Insert length (mm)

    EF020279 - Numeric

    11

    Connection length (mm)

    EF022519 - Numeric

    14

    Length straight (mm)

    EF010860 - Numeric
    Related productclasses

    EC002400/7

    EC002400/8

    EC002400/9

    Synonyms

    Bend for cable tray horizontal 90°
