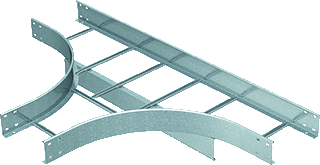

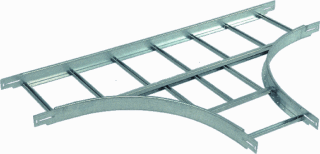

Tee for cable ladder
Code
MC000107Version
2
Group
Electrical - Cable trays and ladders (MG000009)Release
Drawing
Features
01 | Dsp | Rung centre spacing (mm) EF008185 - Numeric | |
02 | Dsp1 | First rung distance centre (mm) EF010861 - Numeric | |
03 | Hi | Inner height (mm) EF006588 - Numeric | |
04 | Ho | Suitable for cable ladder height (mm) EF004818 - Numeric | |
05 | Hsp | Height rung (mm) EF010862 - Numeric | |
15 | R | Inner radius (mm) EF004793 - Numeric | |
22 | Wsp | Rung width (mm) EF010863 - Numeric |
Features port 1
06 | IL1 | Insert length (mm) EF020279 - Numeric | |
09 | L1 | Connection length (mm) EF022519 - Numeric | |
12 | Lr1 | Length straight (mm) EF010860 - Numeric | |
16 | Wi1 | Inner width (mm) EF010004 - Numeric | |
19 | Wo1 | Suitable for cable ladder width (mm) EF004817 - Numeric |
Features port 2
07 | IL2 | Insert length (mm) EF020279 - Numeric | |
10 | L2 | Connection length (mm) EF022519 - Numeric | |
13 | Lr2 | Length straight (mm) EF010860 - Numeric | |
17 | Wi2 | Inner width (mm) EF010004 - Numeric | |
20 | Wo2 | Width branch (mm) EF001063 - Numeric |
Features port 3
08 | IL3 | Insert length (mm) EF020279 - Numeric | |
11 | L3 | Connection length (mm) EF022519 - Numeric | |
14 | Lr3 | Length straight (mm) EF010860 - Numeric | |
18 | Wi3 | Inner width (mm) EF010004 - Numeric | |
21 | Wo3 | Suitable for cable ladder width (mm) EF004817 - Numeric |
Related productclasses
Synonyms
Tee for cable ladder
