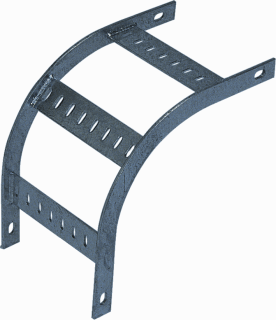

Vertical outside riser for cable ladder
Code
MC000108Version
3
Group
Electrical - Cable trays and ladders (MG000009)Release
Drawing
Features
01 | Bend model EF020423 - Alphanumeric | ||
02 | a | Angle (°) EF008153 - Numeric | |
03 | Dsp | Rung centre spacing (mm) EF008185 - Numeric | |
04 | Dsp1 | First rung distance centre (mm) EF010861 - Numeric | |
05 | H2 | Height (mm) EF000040 - Numeric | |
06 | Hi | Inner height (mm) EF006588 - Numeric | |
07 | Ho | Suitable for cable ladder height (mm) EF004818 - Numeric | |
08 | Hsp | Height rung (mm) EF010862 - Numeric | |
11 | L | Length (mm) EF001438 - Numeric | |
14 | R | Inner radius (mm) EF004793 - Numeric | |
15 | Wi | Inner width (mm) EF006466 - Numeric | |
16 | Wo | Suitable for cable ladder width (mm) EF004817 - Numeric | |
17 | Wsp | Rung width (mm) EF010863 - Numeric |
Features port 1
09 | IL1 | Insert length (mm) EF020279 - Numeric | |
12 | Lr1 | Length straight (mm) EF010860 - Numeric |
Features port 2
10 | IL2 | Insert length (mm) EF020279 - Numeric | |
13 | Lr2 | Length straight (mm) EF010860 - Numeric |
Related productclasses
Synonyms
Vertical outside riser for cable ladder
