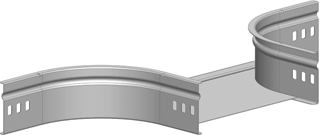

Add-on tee for cable tray

Code

MC000110

Electrical - Cable trays and ladders (MG000009)

Drawing

Features

01	Hi	Inner height (mm) EF006588 - Numeric
02	Ho	Suitable for cable tray height (mm) EF004822 - Numeric
05	L	Length (mm) EF001438 - Numeric
06	Ld	Length push through section (mm) EF010859 - Numeric
08	Lr2	Length straight (mm) EF010860 - Numeric
09	s	Material thickness (mm) EF000386 - Numeric
10	W1	Width 1 (mm) EF023087 - Numeric
11	Wi	Inner width (mm) EF006466 - Numeric
12	Wo	Cable tray branch width (mm) EF004819 - Numeric

Features port 1

	03	IL1	Insert length (mm) EF020279 - Numeric
	07	Lr1	Length straight (mm) EF010860 - Numeric

Features port 2

IL2

Insert length (mm)

EF020279 - Numeric

Related productclasses

Synonyms

Add-on tee for cable tray
