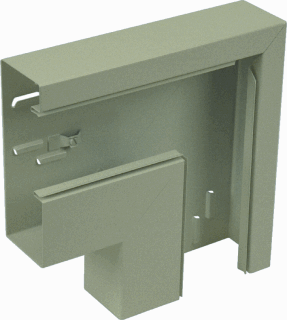

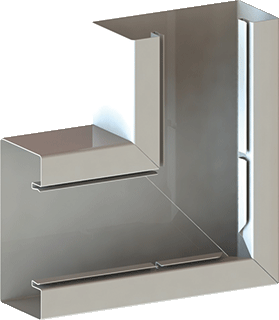

Flat bend for wall duct with 1 inner lying cover MC000113

Published
Electrical - Trunking and surface raceways MG000053

Features 12

Class features

  1. 1

    ModelEF000010

    Choose one value

    Base unit
  2. 2

    Number of coversEF004430

    A number

  3. 3

    Mounting method coverEF002922

    Choose one value

    Inner lying
  4. 4

    Inner depthEF001131

    A number in mm · Hi in drawing

  5. 5

    DepthEF000049

    A number in mm · Ho in drawing

  6. 8

    Material thicknessEF000386

    A number in mm · s in drawing

  7. 9

    Width 1EF023087

    A number in mm · W1 in drawing

  8. 10

    Cover width 1EF005147

    A number in mm · Wd1 in drawing

  9. 11

    WidthEF000008

    A number in mm · Wo in drawing

  10. 12

    Width openingEF004565

    A number in mm · Wi in drawing

Port 1

  1. 6

    Connection lengthEF022519

    A number in mm · L1 in drawing

Port 2

  1. 7

    Connection lengthEF022519

    A number in mm · L2 in drawing
