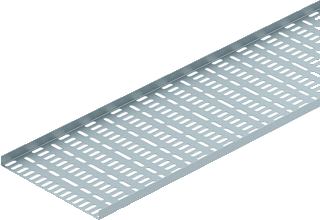

Cable tray/wide span cable tray (without cover)
Code
MC000119Version
2
Group
Electrical - Cable trays and ladders (MG000009)Release
Drawing
Features
01 | Ho | Height (mm) EF000040 - Numeric | |
02 | L | Length (mm) EF001438 - Numeric | |
03 | Ld | Length push through section (mm) EF010859 - Numeric | |
04 | s | Material thickness (mm) EF000386 - Numeric | |
05 | Wo | Width (mm) EF000008 - Numeric | |
06 | Hi | Inner height (mm) EF006588 - Numeric | |
07 | Wi | Inner width (mm) EF006466 - Numeric |
Related productclasses
Synonyms
Cable tray/wide span cable tray (without cover)
