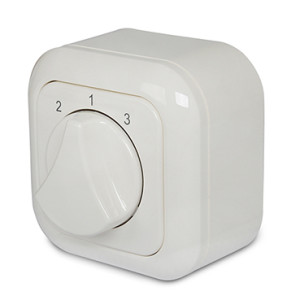

Control element, switching device, rotary, rectangular
MC000141 / v3
Code
MC000141Version
3
Group
Electrical - Wiring devices (MG000019)Release
1 / 2
Drawing
Features
01 | Operating method EF000006 - Alphanumeric | ||
02 | Assembly arrangement EF000005 - Alphanumeric | ||
03 | Mounting method EF000003 - Alphanumeric | ||
04 | CH | Operating height (mm) EF010517 - Numeric | |
05 | D | Diameter (mm) EF000551 - Numeric | |
06 | Ds | Diameter turn button (mm) EF010885 - Numeric | |
07 | FH | Frame height (mm) EF021570 - Numeric | |
08 | FW | Frame width (mm) EF021571 - Numeric | |
09 | ID | Built-in depth (mm) EF000218 - Numeric | |
10 | SH | Surface height (mm) EF010886 - Numeric |
Related productclasses
Synonyms
Control element, switching device, rotary, rectangular
Three-stage switch
Three-stage switch (turn button)
