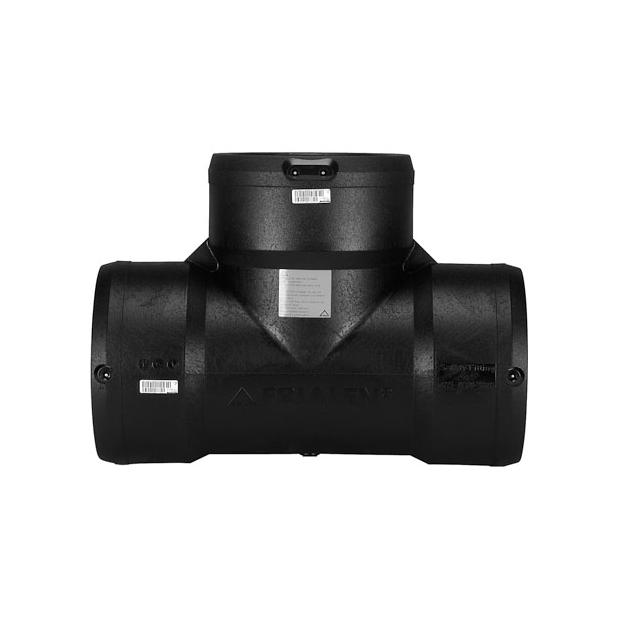

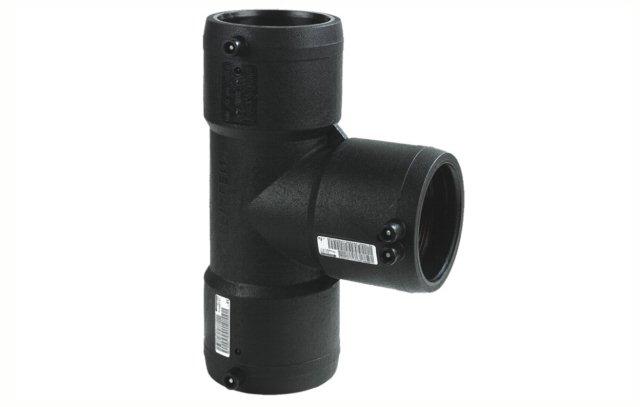

Electrofusion T-piece

Code

MC000148

Version

Group

Piping - Pipe fittings, flanges and adaptors (MG000023)

Release

Drawing

Features

	01		Model EF000010 - Alphanumeric
	02	a	Angle (°) EF008153 - Numeric

Features port 1

	03	DN1	Nominal diameter connection 1 EF023193 - Alphanumeric
	06	Do1	Outer pipe diameter connection 1 (mm) EF020122 - Numeric
	09	E1	Position electrofusion point 1 (mm) EF010906 - Coordinate
	10	E2	Position electrofusion point 2 (mm) EF010907 - Coordinate
	15	L1	Length of connection 1 (mm) EF020151 - Numeric
	18	P1	Sleeve length (mm) EF010520 - Numeric
	21	RV1	Directional vector point 1 EF010688 - Coordinate
	22	RV2	Directional vector point 2 EF010689 - Coordinate
	27	s1	Wall thickness, connection 1 (mm) EF021603 - Numeric
	30	Z1	Working length connection 1 (mm) EF020153 - Numeric
	33		Connection 1 EF000321 - Alphanumeric

Features port 2

	04	DN2	Nominal diameter connection 2 EF020052 - Alphanumeric
	07	Do2	Outer pipe diameter connection 2 (mm) EF020123 - Numeric
	11	E3	Position electrofusion point 1 (mm) EF010906 - Coordinate
	12	E4	Position electrofusion point 2 (mm) EF010907 - Coordinate
	16	L2	Length of connection 2 (mm) EF020152 - Numeric
	19	P2	Sleeve length (mm) EF010520 - Numeric
	23	RV3	Directional vector point 1 EF010688 - Coordinate
	24	RV4	Directional vector point 2 EF010689 - Coordinate
	28	s2	Wall thickness, connection 2 (mm) EF021604 - Numeric
	31	Z2	Working length connection 2 (mm) EF020154 - Numeric
	34		Connection 2 EF000322 - Alphanumeric

Features port 3

	05	DN3	Nominal diameter connection 3 EF020053 - Alphanumeric
	08	Do3	Outer pipe diameter connection 3 (mm) EF020124 - Numeric
	13	E5	Position electrofusion point 1 (mm) EF010906 - Coordinate
	14	E6	Position electrofusion point 2 (mm) EF010907 - Coordinate
	17	L3	Length of connection 3 (mm) EF020159 - Numeric
	20	P3	Sleeve length (mm) EF010520 - Numeric
	25	RV5	Directional vector point 1 EF010688 - Coordinate
	26	RV6	Directional vector point 2 EF010689 - Coordinate
	29	s3	Wall thickness, connection 3 (mm) EF021353 - Numeric
	32	Z3	Working length connection 3 (mm) EF020160 - Numeric
	35		Connection 3 EF020065 - Alphanumeric

Related productclasses

Synonyms

Electrofusion T-piece
