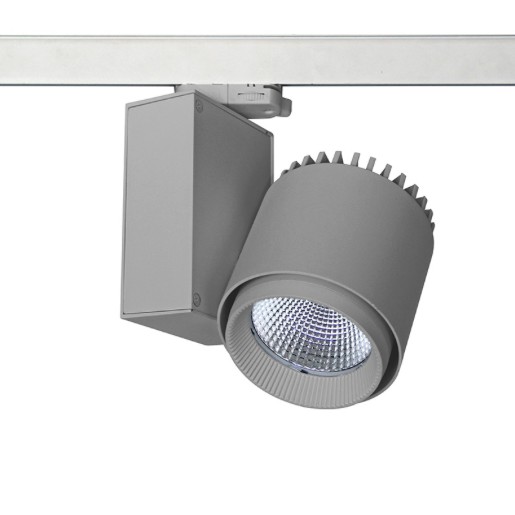

Spot luminaire/floodlight (model 2) MC000160

Published
Lighting - Luminaires and accessories MG000029

Features 16

  1. 1

    Angle spot luminaireEF010929

    A number in ° · a1 in drawing

  2. 2

    Angle of tilt spot luminaireEF010930

    A number in ° · a2 in drawing

  3. 3

    Diameter armEF011016

    A number in mm · Dc in drawing

  4. 4

    Diameter spot luminaireEF010932

    A number in mm · Ds in drawing

  5. 5

    Height 1EF010005

    A number in mm · H1 in drawing

  6. 6

    Height 2EF010006

    A number in mm · H2 in drawing

  7. 7

    Busbar heightEF002639

    A number in mm · Hr in drawing

  8. 8

    Height spot luminaireEF010934

    A number in mm · Hs in drawing

  9. 9

    Height ballastEF010916

    A number in mm · Hv in drawing

  10. 10

    Length 1EF021554

    A number in mm · L1 in drawing

  11. 11

    Arm lengthEF010960

    A number in mm · Lc in drawing

  12. 12

    Rail lengthEF010935

    A number in mm · Lr in drawing

  13. 13

    Length ballastEF010936

    A number in mm · Lv in drawing

  14. 14

    Diameter opticsEF002764

    A number in mm · OD in drawing

  15. 15

    Rail widthEF003704

    A number in mm · Wr in drawing

  16. 16

    Width ballastEF010918

    A number in mm · Wv in drawing
