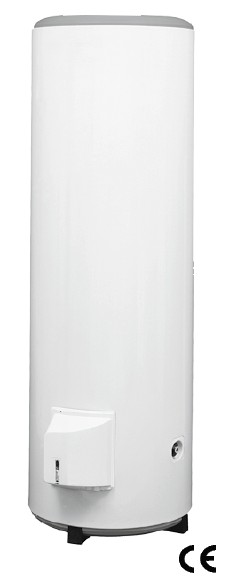

Boiler round electrical (floor positioning, bottom connection)

Code

MC000165

Hydronic - Heat sources and primary components (MG000026)

Drawing

Features

01		Vertical positioning EF021399 - Logical
02	a	Angle (°) EF008153 - Numeric
06	D	Diameter (mm) EF000551 - Numeric
19	H	Height (mm) EF000040 - Numeric
20	H1	Height foot (mm) EF010820 - Numeric
21	H2	Height operating element (mm) EF022273 - Numeric
24	n	Number of legs EF023457 - Numeric
29	r1	Radius support (mm) EF010821 - Numeric

Features port 1

03	C1	Height screw gland (mm) EF010040 - Numeric
07	DN1	Nominal diameter cold tap water EF020013 - Alphanumeric
09	Do1	Outer pipe diameter cold tap water (mm) EF020499 - Numeric
11	Dr1	Rim diameter (mm) EF010037 - Numeric
13	dx1	Length to connection (mm) EF010818 - Numeric
15	dy1	Width to connection (mm) EF010819 - Numeric
17	g1	Height screw gland edge (mm) EF010516 - Numeric
22	L1	Connection length (mm) EF022519 - Numeric
25	P1	Sleeve length (mm) EF010520 - Numeric
27	Q1	Length gusset/thread (mm) EF010521 - Numeric
30	s1	Wall thickness connection (mm) EF010546 - Numeric
32	SLW1	Wrench width (mm) EF000177 - Numeric
34		Cold tap water connection EF021386 - Alphanumeric

Features port 2

04	C2	Height screw gland (mm) EF010040 - Numeric
08	DN2	Nominal diameter hot tap water EF010896 - Alphanumeric
10	Do2	Outer pipe diameter hot tap water (mm) EF020504 - Numeric
12	Dr2	Rim diameter (mm) EF010037 - Numeric
14	dx2	Length to connection (mm) EF010818 - Numeric
16	dy2	Width to connection (mm) EF010819 - Numeric
18	g2	Height screw gland edge (mm) EF010516 - Numeric
23	L2	Connection length (mm) EF022519 - Numeric
26	P2	Sleeve length (mm) EF010520 - Numeric
28	Q2	Length gusset/thread (mm) EF010521 - Numeric
31	s2	Wall thickness connection (mm) EF010546 - Numeric
33	SLW2	Wrench width (mm) EF000177 - Numeric
35		Hot tap water connection EF021387 - Alphanumeric

Features port 3

CA3

Position electrical connection (mm)

EF010979 - Coordinate

Related productclasses

Synonyms

Boiler round electrical (floor positioning, bottom connection)
