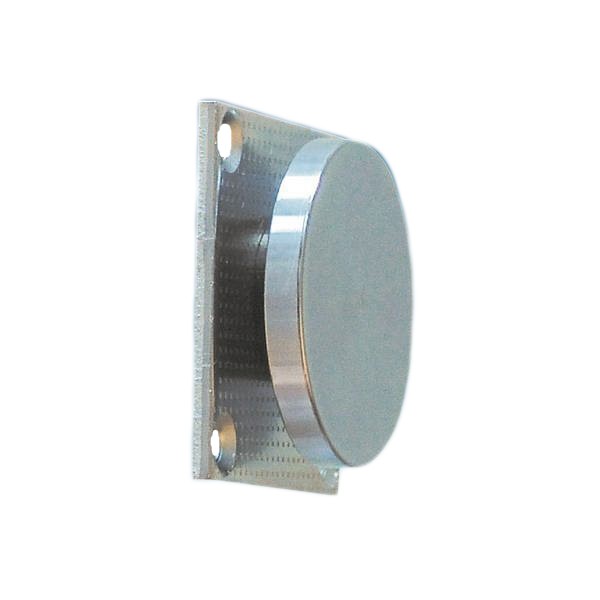

Anchor plate for permanent magnet MC000171

Published
Alarm installations, emergency call and signalling MG000006

Features 5

  1. 1

    DiameterEF000551

    A number in mm · D in drawing

  2. 2

    HeightEF000040

    A number in mm · H in drawing

  3. 3

    Height baseEF010937

    A number in mm · Hb in drawing

  4. 4

    Surface heightEF010886

    A number in mm · SH in drawing

  5. 5

    WidthEF000008

    A number in mm · W in drawing

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
