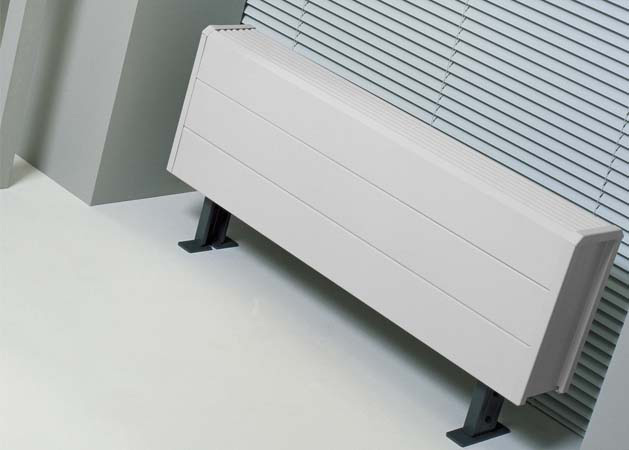

Convector radiator
Code
MC000174Version
Group
Modelling classes to be regrouped (MG000002)Release
Drawing
Features
01 | Mounting method EF000003 - Alphanumeric | ||
08 | BA | Bracket distance (mm) EF010822 - Numeric | |
09 | Bh | Bracket height (mm) EF009197 - Numeric | |
10 | Bv | Width foot (mm) EF010844 - Numeric | |
11 | D | Depth (mm) EF000049 - Numeric | |
30 | H | Height (mm) EF000040 - Numeric | |
31 | H1 | Base height (mm) EF024659 - Range | |
32 | H1 | Default base height (mm) EF015225 - Numeric | |
37 | L | Length (mm) EF001438 - Numeric | |
45 | Le3 | Length 3 (mm) EF021750 - Numeric | |
46 | Le4 | Length 4 (mm) EF010951 - Numeric | |
47 | Le5 | Length 5 (mm) EF010961 - Numeric | |
48 | Le6 | Length 6 (mm) EF010962 - Numeric | |
50 | Lv | Length foot (mm) EF010963 - Numeric |
Features port 1
02 | Connection EF000443 - Alphanumeric | ||
12 | DN1 | Nominal diameter EF023191 - Alphanumeric | |
18 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
24 | Dy1 | Width to connection (mm) EF010819 - Numeric | |
38 | L1 | Connection length (mm) EF022519 - Numeric | |
44 | Le1 | Length to connection (mm) EF010818 - Numeric | |
51 | Z1 | Working length (mm) EF006318 - Numeric |
Features port 2
03 | Connection EF000443 - Alphanumeric | ||
13 | DN2 | Nominal diameter EF023191 - Alphanumeric | |
19 | Do2 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
25 | Dy2 | Width to connection (mm) EF010819 - Numeric | |
33 | H2 | Height to connection (mm) EF010721 - Numeric | |
39 | L2 | Connection length (mm) EF022519 - Numeric | |
52 | Z2 | Working length (mm) EF006318 - Numeric |
Features port 3
04 | Connection EF000443 - Alphanumeric | ||
14 | DN3 | Nominal diameter EF023191 - Alphanumeric | |
20 | Do3 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
26 | Dy3 | Width to connection (mm) EF010819 - Numeric | |
34 | H3 | Height to connection (mm) EF010721 - Numeric | |
40 | L3 | Connection length (mm) EF022519 - Numeric | |
53 | Z3 | Working length (mm) EF006318 - Numeric |
Features port 6
05 | Connection EF000443 - Alphanumeric | ||
15 | DN6 | Nominal diameter EF023191 - Alphanumeric | |
21 | Do6 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
27 | Dy6 | Width to connection (mm) EF010819 - Numeric | |
35 | H6 | Height to connection (mm) EF010721 - Numeric | |
41 | L6 | Connection length (mm) EF022519 - Numeric | |
54 | Z6 | Working length (mm) EF006318 - Numeric |
Features port 7
06 | Connection EF000443 - Alphanumeric | ||
16 | DN7 | Nominal diameter EF023191 - Alphanumeric | |
22 | Do7 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
28 | Dy7 | Width to connection (mm) EF010819 - Numeric | |
36 | H7 | Height to connection (mm) EF010721 - Numeric | |
42 | L7 | Connection length (mm) EF022519 - Numeric | |
55 | Z7 | Working length (mm) EF006318 - Numeric |
Features port 8
07 | Connection EF000443 - Alphanumeric | ||
17 | DN8 | Nominal diameter EF023191 - Alphanumeric | |
23 | Do8 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
29 | Dy8 | Width to connection (mm) EF010819 - Numeric | |
43 | L8 | Connection length (mm) EF022519 - Numeric | |
49 | Le8 | Length to connection (mm) EF010818 - Numeric | |
56 | Z8 | Working length (mm) EF006318 - Numeric |
Related productclasses
Synonyms
Convector radiator
Convector radiator (free-standing)
