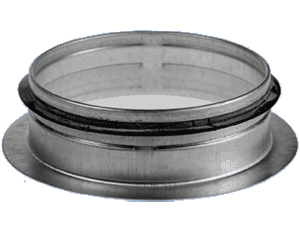

Round saddle piece for rectangular air duct
Code
MC000184Version
2
Group
Ventilation - Ducts and duct fittings (MG000003)Release
Drawing
Features
01 | Design form EF022659 - Alphanumeric | ||
02 | a | Angle (°) EF008153 - Numeric | |
04 | FH | Height flange (mm) EF010695 - Numeric | |
08 | s | Plate thickness (mm) EF006112 - Numeric | |
10 | Connection EF000443 - Alphanumeric |
Features port 1
03 | DN | Nominal duct diameter branch (mm) EF022406 - Numeric | |
05 | IL | Insert length (mm) EF020279 - Numeric | |
06 | k | Rim thickness (mm) EF010038 - Numeric | |
07 | L | Height (duct top) (mm) EF023574 - Numeric | |
09 | Z | Working height (duct top) (mm) EF023575 - Numeric |
Related productclasses
Synonyms
Round saddle piece for rectangular air duct
