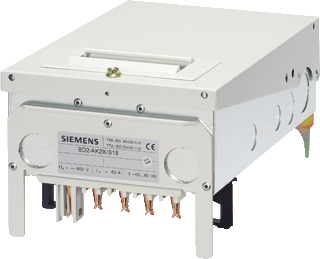

Tap off unit for busbar trunk
Code
MC000186Version
1
Group
Electrical - Power distribution and protection (MG000017)Release
Drawing
Features
01 | Branch off type EF006674 - Alphanumeric | ||
02 | FH | Frame height (mm) EF021570 - Numeric | |
03 | FW | Frame width (mm) EF021571 - Numeric | |
04 | H | Height (mm) EF000040 - Numeric | |
05 | H1 | Height 1 (mm) EF010005 - Numeric | |
06 | L | Length (mm) EF001438 - Numeric | |
07 | L1 | Length 1 (mm) EF021554 - Numeric | |
08 | L2 | Length 2 (mm) EF021555 - Numeric | |
09 | L3 | Length 3 (mm) EF021750 - Numeric | |
10 | L4 | Length 4 (mm) EF010951 - Numeric | |
11 | L5 | Length 5 (mm) EF010961 - Numeric | |
12 | L6 | Length 6 (mm) EF010962 - Numeric | |
13 | W | Width (mm) EF000008 - Numeric | |
14 | W1 | Width 1 (mm) EF023087 - Numeric | |
15 | W2 | Width 2 (mm) EF023088 - Numeric |
Related productclasses
Synonyms
Tap off unit for busbar trunk
