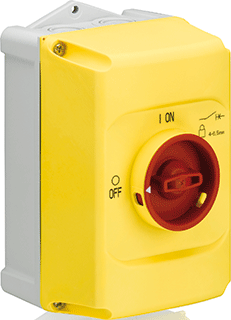

Empty enclosure for switchgear MC000190

Published
Low-voltage industrial components MG000030

Features 15

  1. 1

    ModelEF000010

    Choose one value

    Surface mounting
  2. 2

    DepthEF000049

    A number in mm · D in drawing

  3. 3

    Depth 1EF010952

    A number in mm · D1 in drawing

  4. 4

    Depth 2EF010953

    A number in mm · D2 in drawing

  5. 5

    Depth 3EF010988

    A number in mm · D3 in drawing

  6. 6

    Depth cable entry 1EF010982

    A number in mm · Dc1 in drawing

  7. 7

    Depth cable entry 2EF010983

    A number in mm · Dc2 in drawing

  8. 8

    Frame heightEF021570

    A number in mm · FH in drawing

  9. 9

    Frame widthEF021571

    A number in mm · FW in drawing

  10. 10

    HeightEF000040

    A number in mm · H in drawing

  11. 11

    Height 1EF010005

    A number in mm · H1 in drawing

  12. 12

    WidthEF000008

    A number in mm · W in drawing

  13. 13

    Width 1EF023087

    A number in mm · W1 in drawing

  14. 14

    Width cable entry 1EF010984

    A number in mm · Wc1 in drawing

  15. 15

    Width cable entry 2EF010985

    A number in mm · Wc2 in drawing
