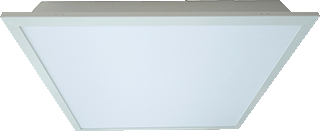

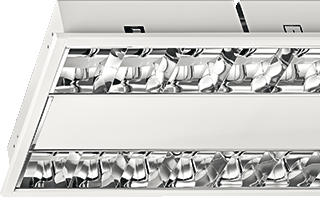

Ceiling luminaire (rectangular,built-in) MC000206

Published
Lighting - Luminaires and accessories MG000029

Features 13

  1. 1

    Height 1EF010005

    A number in mm · H1 in drawing

  2. 2

    Height 2EF010006

    A number in mm · H2 in drawing

  3. 3

    Height flangeEF010695

    A number in mm · Hf in drawing

  4. 4

    LengthEF001438

    A number in mm · L in drawing

  5. 5

    Built-in lengthEF004265

    A number in mm · L1 in drawing

  6. 6

    Length 1EF021554

    A number in mm · L2 in drawing

  7. 7

    Length 2EF021555

    A number in mm · L3 in drawing

  8. 8

    Length opticsEF010914

    A number in mm · OL in drawing

  9. 9

    Width opticsEF010915

    A number in mm · OW in drawing

  10. 10

    WidthEF000008

    A number in mm · W in drawing

  11. 11

    Built-in widthEF000846

    A number in mm · W1 in drawing

  12. 12

    Width 1EF023087

    A number in mm · W2 in drawing

  13. 13

    Width 2EF023088

    A number in mm · W3 in drawing

Codes after each name are ETIM feature codes. Use them, not the names, in product data.

Find an ETIM class

Search by

  • Class code for the fastest match, such as EC002738
  • Description: words from the class name, in the selected language
  • Synonym: another name the class is known by

Product or modelling class?

Product classes (EC) describe products you can buy, such as luminaires, cables or valves. Modelling classes (MC) describe components for CAD and BIM design, with drawings and connection points.
