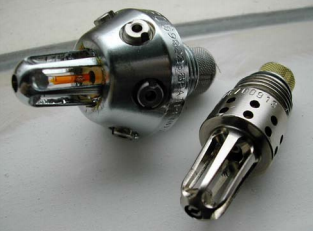

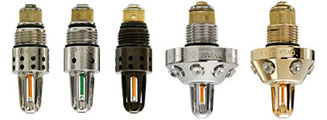

Water mist sprinkler (pendent, with response element)
Code
MC000232Version
2
Group
Fire and life safety - Fire protection equipment and components (MG000041)Release
Drawing
Features
01 | Position EF020083 - Alphanumeric | ||
02 | D1 | Diameter 1 (mm) EF010945 - Numeric | |
03 | D2 | Diameter 2 (mm) EF010946 - Numeric | |
04 | D3 | Diameter sprinkler cage (mm) EF011092 - Numeric | |
07 | H1 | Height 1 (mm) EF010005 - Numeric | |
08 | H2 | Height 2 (mm) EF010006 - Numeric | |
09 | H3 | Height 3 (mm) EF010887 - Numeric |
Features port 1
05 | DN1 | Nominal diameter EF023191 - Alphanumeric | |
06 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
10 | L1 | Connection length (mm) EF022519 - Numeric | |
11 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
12 | Connection EF000443 - Alphanumeric |
Related productclasses
Synonyms
Water mist sprinkler (bulb pendant)
Water mist sprinkler (pendent, with response element)
