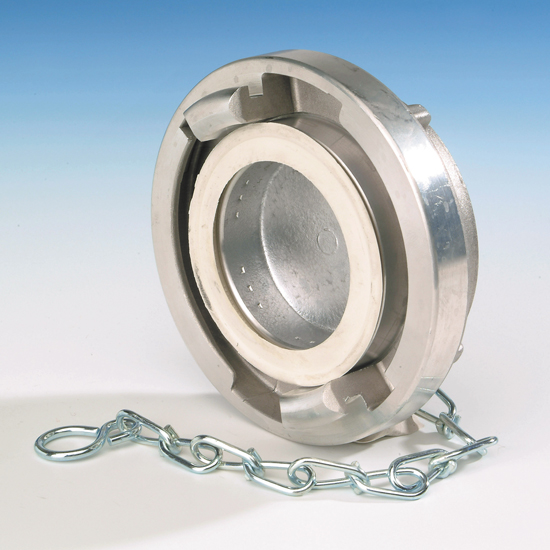

Storz blind cap
Code
MC000240Version
1
Group
Piping - Pipe fittings, flanges and adaptors (MG000023)Release
Drawing
Features
03 | L | Length (mm) EF001438 - Numeric | |
04 | Le1 | Thickness (mm) EF000125 - Numeric |
Features port 1
01 | B | Lug distance EF023188 - Alphanumeric | |
02 | D | Diameter (mm) EF000551 - Numeric | |
05 | NH | Lug height EF011098 - Numeric | |
06 | Connection EF000443 - Alphanumeric |
Related productclasses
Synonyms
Storz blind cap
