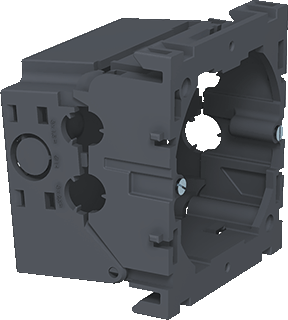

Junction box for wall duct
Code
MC000244Version
2
Group
Electrical - Trunking and surface raceways (MG000053)Release
Drawing
Features
01 | Number of units EF000074 - Numeric | ||
02 | Model EF000010 - Alphanumeric | ||
03 | D | Depth (mm) EF000049 - Numeric | |
04 | H1 | Height 1 (mm) EF010005 - Numeric | |
05 | H2 | Height 2 (mm) EF010006 - Numeric | |
06 | s | Material thickness (mm) EF000386 - Numeric | |
07 | W | Width (mm) EF000008 - Numeric |
Related productclasses
Synonyms
Junction box for wall duct
