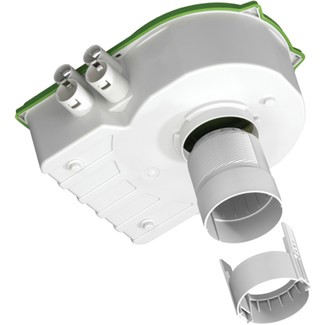

Luminaire built-in installation box for concrete construction
Code
MC000246Version
5
Group
Lighting - Luminaires and accessories (MG000029)Release
Drawing
Features
01 | Number of inlets EF003593 - Numeric | ||
02 | D1 | Diameter 1 (mm) EF010945 - Numeric | |
03 | D2 | Diameter 2 (mm) EF010946 - Numeric | |
04 | D3 | Suitable for tube diameter EF005496 - Alphanumeric | |
05 | H1 | Height 1 (mm) EF010005 - Numeric | |
06 | H2 | Height 2 (mm) EF010006 - Numeric | |
07 | H3 | Height 3 (mm) EF010887 - Numeric | |
08 | H4 | Height 4 (mm) EF010998 - Numeric | |
09 | IL | Insert length (mm) EF020279 - Numeric | |
10 | L | Length (mm) EF001438 - Numeric | |
11 | L1 | Length 1 (mm) EF021554 - Numeric | |
12 | L2 | Length 2 (mm) EF021555 - Numeric | |
13 | L3 | Length 3 (mm) EF021750 - Numeric | |
14 | L4 | Length 4 (mm) EF010951 - Numeric | |
15 | r | Radius (mm) EF020621 - Numeric | |
16 | W1 | Width 1 (mm) EF023087 - Numeric | |
17 | W2 | Width 2 (mm) EF023088 - Numeric |
Related productclasses
Synonyms
Luminaire built-in installation box concrete construction
Luminaire built-in installation box for concrete construction
