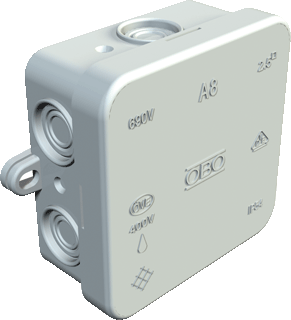

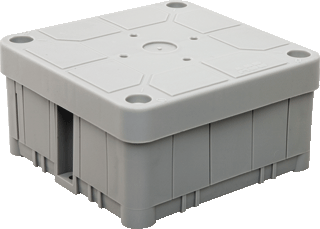

    Box/housing for surface mounting on the wall/ceiling

    Code

    MC000247

    Version

    2

    Group

    Electrical distribution systems (MG000017)

    Release

    nl 2BA se RSK be InstallData fi Sahkonumerot
    Drawing
    Dimensional drawing
    Features

    01

    Shape

    EF000051 - Alphanumeric

    02

    Mounting method

    EF000003 - Alphanumeric

    03

    Cover model

    EF009212 - Alphanumeric

    04

    D

    Depth (mm)

    EF000049 - Numeric

    05

    L1

    Length 1 (mm)

    EF021554 - Numeric

    06

    L2

    Length 2 (mm)

    EF021555 - Numeric

    07

    L3

    Length 3 (mm)

    EF021750 - Numeric

    08

    L4

    Length 4 (mm)

    EF010951 - Numeric

    09

    s

    Material thickness (mm)

    EF000386 - Numeric

    10

    W1

    Width 1 (mm)

    EF023087 - Numeric

    11

    W2

    Width 2 (mm)

    EF023088 - Numeric

    12

    W3

    Width 3 (mm)

    EF010999 - Numeric

    13

    W4

    Width 4 (mm)

    EF011000 - Numeric

    14

    W5

    Width 5 (mm)

    EF011001 - Numeric
    Related productclasses

    EC002600/7

    EC002600/8

    Synonyms

    Box/housing for surface mounting on the wall/ceiling
