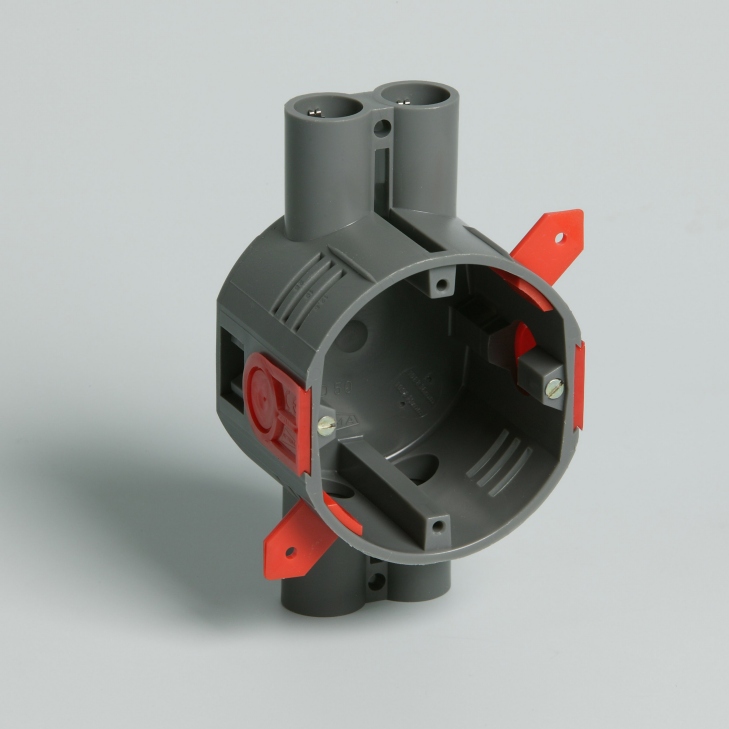

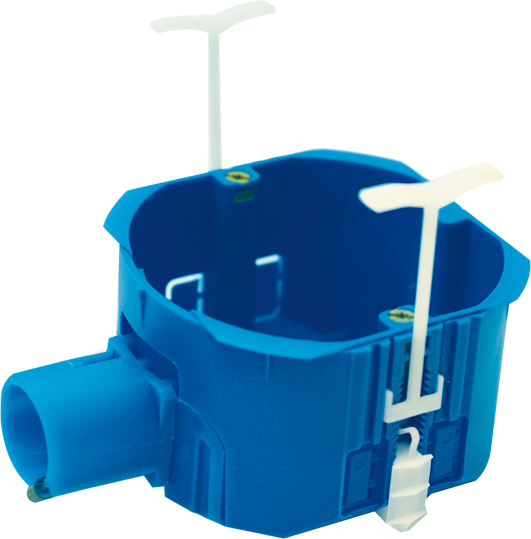

Built-in installation box single

Code

MC000249

Version

3

Group

Electrical - Power distribution and protection (MG000017)

Release

nl 2BA se RSK be InstallData fi Sahkonumerot
Drawing
Dimensional drawing
Features

01

Shape

EF000051 - Alphanumeric

02

Model

EF000010 - Alphanumeric

03

Inlet from the rear

EF005604 - Logical

04

Number of inlets

EF003593 - Numeric

05

D1

Diameter (mm)

EF000551 - Numeric

06

D2

For tube diameter

EF005496 - Alphanumeric

07

D3

Depth (mm)

EF000049 - Numeric

08

D4

Depth conduit inlet (mm)

EF011122 - Numeric

09

H1

Height 1 (mm)

EF010005 - Numeric

10

IL

Insert length (mm)

EF020279 - Numeric

17

s

Material thickness (mm)

EF000386 - Numeric

18

W2

Width 2 (mm)

EF023088 - Numeric
Features port 1

11

L1

Length 1 (mm)

EF021554 - Numeric
Features port 2

12

L2

Length 2 (mm)

EF021555 - Numeric
Features port 3

13

L3

Length 3 (mm)

EF021750 - Numeric
Features port 4

14

L4

Length 4 (mm)

EF010951 - Numeric
Features port 5

15

L5

Length 5 (mm)

EF010961 - Numeric
Features port 6

16

L6

Length 6 (mm)

EF010962 - Numeric
Related productclasses

EC002601/6

EC002601/7

EC002601/8

EC002601/9

Synonyms

Built-in installation box single
