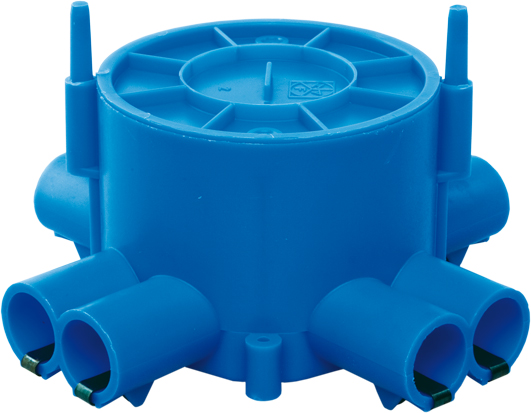

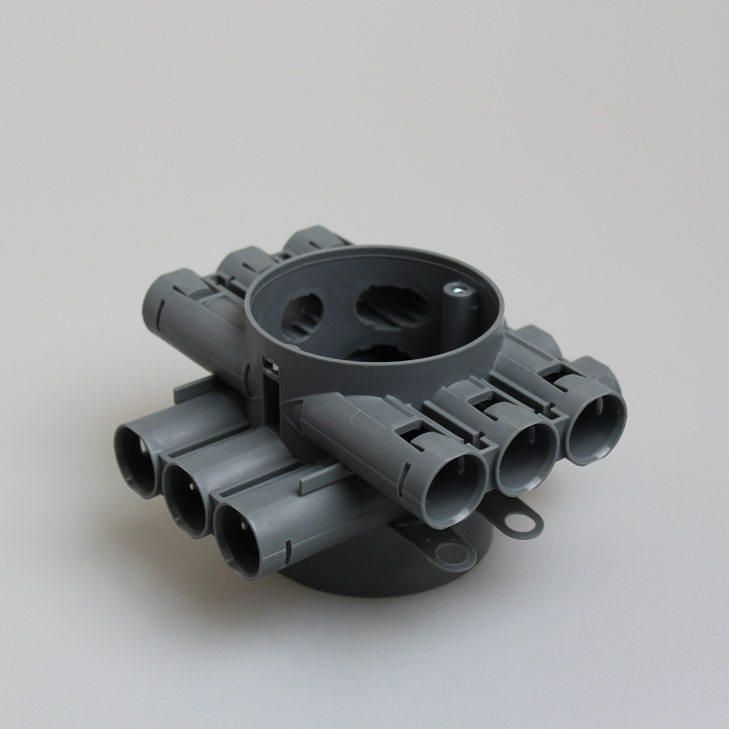

Zentraldose rund (Ausführung 1) MC000250

A round junction box and central conduit entries used to enclose and protect conductor connections at a conduit junction point.

Under construction
Elektrische Verteilungssysteme MG000017

Features 13

  1. 1

    FormEF000051

    Choose one value

    rund
  2. 2

    BauformEF000767

    Choose one value

    Zentraldose
  3. 3

    Anzahl der EinführungenEF003593

    A number

  4. 4

    Geeignet für RohrdurchmesserEF005496

    Choose one value · D1 in drawing

    16 mm16/19 mm19 mm20 mm20/25 mm25 mm32 mm1/2 Zoll3/4 Zoll1 Zoll
  5. 5

    DurchmesserEF000551

    A number in mm · D2 in drawing

  6. 6

    TiefeEF000049

    A number in mm · D3 in drawing

  7. 7

    Höhe 1EF010005

    A number in mm · H1 in drawing

  8. 8

    Höhe 2EF010006

    A number in mm · H2 in drawing

  9. 9

    EinstecklängeEF020279

    A number in mm · IL in drawing

  10. 10

    Länge 1EF021554

    A number in mm · L1 in drawing

  11. 11

    Länge 2EF021555

    A number in mm · L2 in drawing

  12. 12

    Länge 3EF021750

    A number in mm · L3 in drawing

  13. 13

    MaterialstärkeEF000386

    A number in mm · s in drawing
