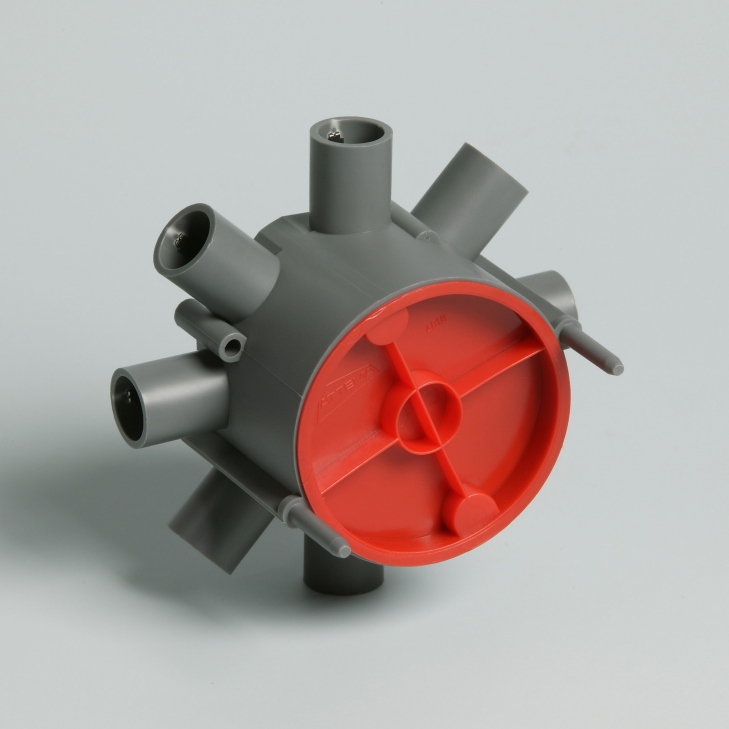

Central conduit box round (model 2)
Code
MC000252Version
1
Group
Electrical - Power distribution and protection (MG000017)Release
Drawing
Features
01 | Shape EF000051 - Alphanumeric | ||
02 | Construction type EF000767 - Alphanumeric | ||
03 | Number of inlets EF003593 - Numeric | ||
04 | D | Diameter (mm) EF000551 - Numeric | |
05 | D1 | For tube diameter EF005496 - Alphanumeric | |
06 | D2 | Depth (mm) EF000049 - Numeric | |
07 | H1 | Height 1 (mm) EF010005 - Numeric | |
08 | H2 | Height 2 (mm) EF010006 - Numeric | |
09 | IL | Insert length (mm) EF020279 - Numeric | |
10 | L1 | Length 1 (mm) EF021554 - Numeric | |
11 | s | Material thickness (mm) EF000386 - Numeric |
Related productclasses
Synonyms
Central conduit box round (model 2)
