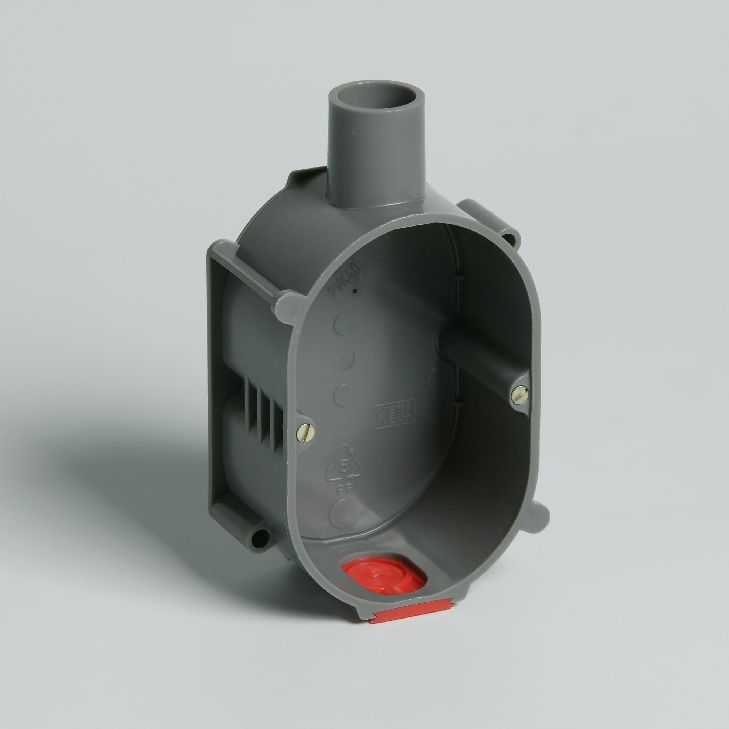

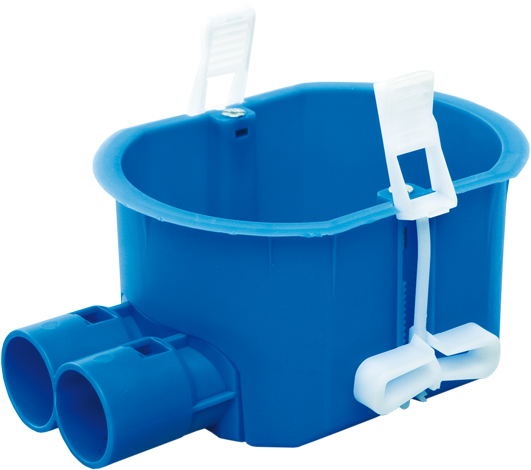

Installation box, built-in, oval
MC000254 / v4
Code
MC000254Version
4
Group
Electrical - Power distribution and protection (MG000017)Release
1 / 2
Drawing
Features
01 | Shape EF000051 - Alphanumeric | ||
02 | Model EF000010 - Alphanumeric | ||
03 | Inlet from the rear EF005604 - Logical | ||
04 | Number of inlets EF003593 - Numeric | ||
05 | D | Depth (mm) EF000049 - Numeric | |
06 | D1 | Suitable for tube diameter EF005496 - Alphanumeric | |
07 | D2 | Depth conduit inlet (mm) EF011122 - Numeric | |
08 | H1 | Height 1 (mm) EF010005 - Numeric | |
09 | H2 | Height 2 (mm) EF010006 - Numeric | |
10 | H3 | Height 3 (mm) EF010887 - Numeric | |
11 | H4 | Height 4 (mm) EF010998 - Numeric | |
12 | IL | Insert length (mm) EF020279 - Numeric | |
19 | r | Radius (mm) EF020621 - Numeric | |
20 | s | Material thickness (mm) EF000386 - Numeric |
Features port 1
13 | L1 | Length 1 (mm) EF021554 - Numeric |
Features port 2
14 | L2 | Length 2 (mm) EF021555 - Numeric |
Features port 3
15 | L3 | Length 3 (mm) EF021750 - Numeric |
Features port 4
16 | L4 | Length 4 (mm) EF010951 - Numeric |
Features port 5
17 | L5 | Length 5 (mm) EF010961 - Numeric |
Features port 6
18 | L6 | Length 6 (mm) EF010962 - Numeric |
Related productclasses
Synonyms
Box/housing for built-in mounting in the wall/ceiling
Built-in installation box
Built-in installation box one and a half
Cable box
Cable junction box for light pole
CEE built-in installation box
Central conduit box
Connector socket
Distributor
Distributor box
Distributor enclosure
Installation box, built-in, oval
Junction box
Perilex
