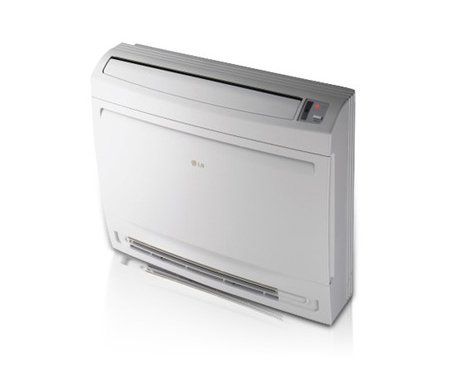

Air-conditioning split system - inside unit (floor) MC000261

Under construction Ventilation - Air conditioners and heat pumps MG000005

/

Features 35

Class features

1
Model (indoor unit)EF024942

Choose one value

Floor
2
Position thermostat cableEF011429

A coordinate in mm · CA1 in drawing
3
Position electrical connectionEF010979

A coordinate in mm · CA2 in drawing
4
Position control cableEF011430

A coordinate in mm · CA3 in drawing
5
Depth indoor unitEF000866

A number in mm · D in drawing
12
Height indoor unitEF000865

A number in mm · H in drawing
16
Height footEF010820

A number in mm · H4 in drawing
32
Width indoor unitEF000864

A number in mm · W in drawing

Port 1

6
Nominal diameter fluid pipeEF024967

Choose one value · DN1 in drawing

1/8 inch1/4 inch3/8 inch1/2 inch5/8 inch3/4 inch7/8 inch1 1/8 inch
9
Outer pipe diameter of fluid pipeEF024968

A number in mm · Do1 in drawing
13
Height to connectionEF010721

A number in mm · H1 in drawing
17
Connection lengthEF022519

A number in mm · L1 in drawing
20
Distance to centre connectionEF010708

A number in mm · Le1 in drawing
23
Sleeve length (no longer used)EF010520

A number in mm · P1 in drawing
26
Length gusset/threadEF010521

A number in mm · Q1 in drawing
29
Wall thickness connectionEF010546

A number in mm · s1 in drawing
33
ConnectionEF000443

Choose one value

Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread metricInternal thread conical (NPT)Internal thread flare (UNF)Soldered sleeveExternal thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)External thread flare (UNF)Soldered endThin-walled steel pipe end

Port 2

7
Nominal diameter suction pipeEF020136

Choose one value · DN2 in drawing

1/8 inch1/4 inch3/8 inch1/2 inch5/8 inch3/4 inch7/8 inch1 1/8 inch
10
Outer pipe diameter suction pipeEF020139

A number in mm · Do2 in drawing
14
Height to connectionEF010721

A number in mm · H2 in drawing
18
Connection lengthEF022519

A number in mm · L2 in drawing
21
Distance to centre connectionEF010708

A number in mm · Le2 in drawing
24
Sleeve length (no longer used)EF010520

A number in mm · P2 in drawing
27
Length gusset/threadEF010521

A number in mm · Q2 in drawing
30
Wall thickness connectionEF010546

A number in mm · s2 in drawing
34
ConnectionEF000443

Choose one value

Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread metricInternal thread conical (NPT)Internal thread flare (UNF)Soldered sleeveExternal thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)External thread flare (UNF)Soldered endThin-walled steel pipe end

Port 3

8
Nominal diameterEF023191

Choose one value · DN3 in drawing

DN 10DN 12DN 15DN 18DN 20DN 25DN 32DN 40
11
Outer pipe diameter condensate drainEF024969

A number in mm · Do3 in drawing
15
Height to connectionEF010721

A number in mm · H3 in drawing
19
Connection lengthEF022519

A number in mm · L3 in drawing
22
Distance to centre connectionEF010708

A number in mm · Le3 in drawing
25
Sleeve length (no longer used)EF010520

A number in mm · P3 in drawing
28
Length gusset/threadEF010521

A number in mm · Q3 in drawing
31
Wall thickness connectionEF010546

A number in mm · s3 in drawing
35
ConnectionEF000443

Choose one value

Glued endGlued sleeveSoldered endSoldered sleeve

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
