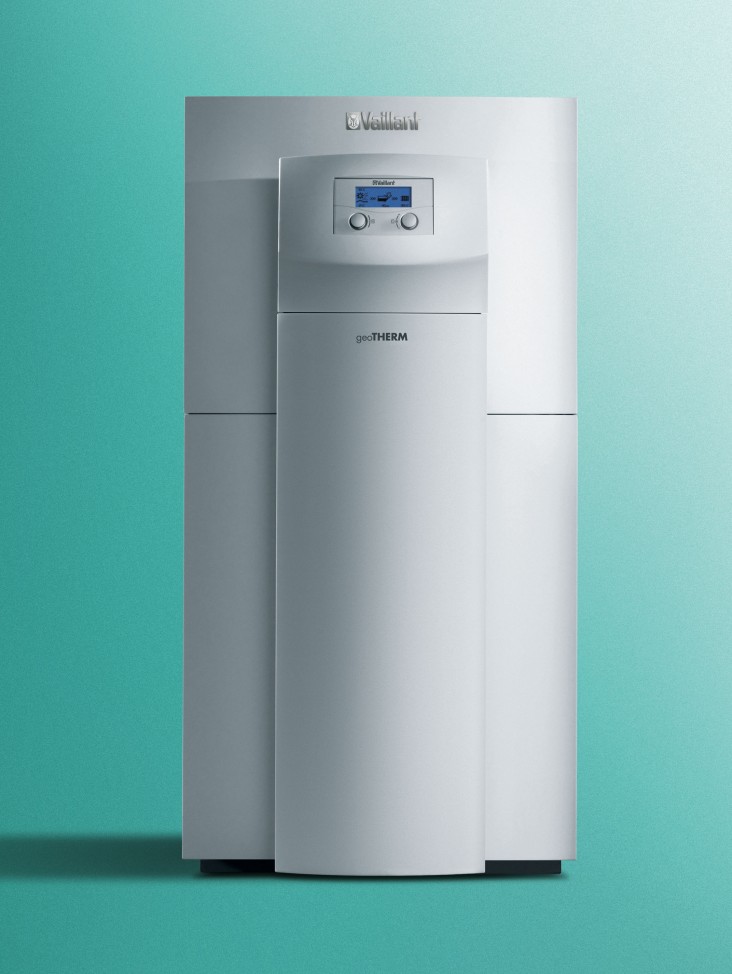

Heat pump floor (water/water, floor positioning)

Code

MC000267

Hydronic - Heat sources and primary components (MG000026)

Drawing

Features

01		Suitable for hot tap water EF021195 - Logical
08	CA7	Position thermostat cable (mm) EF011429 - Coordinate
09	CA8	Position electrical connection (mm) EF010979 - Coordinate
10	CA9	Position control cable (mm) EF011430 - Coordinate
11	D	Depth (mm) EF000049 - Numeric
24	H	Height (mm) EF000040 - Numeric
25	H1	Height to bottom side (mm) EF011432 - Numeric
26	H2	Height operating element (mm) EF022273 - Numeric
33	LB	Position control panel EF010733 - Alphanumeric
58	W	Width (mm) EF000008 - Numeric

Features port 1

02	CA1	Position connection (mm) EF011006 - Coordinate
12	DN1	Nominal diameter EF023191 - Alphanumeric
18	Do1	Outer pipe diameter connection source system (mm) EF025886 - Numeric
27	L1	Connection length (mm) EF022519 - Numeric
34	P1	Sleeve length (mm) EF010520 - Numeric
40	Q1	Length gusset/thread (mm) EF010521 - Numeric
46	RV1	Directional vector connection EF011005 - Coordinate
52	s1	Wall thickness connection (mm) EF010546 - Numeric
59		Connection EF000443 - Alphanumeric

Features port 2

03	CA2	Position connection (mm) EF011006 - Coordinate
13	DN2	Nominal diameter EF023191 - Alphanumeric
19	Do2	Outer pipe diameter connection source system (mm) EF025886 - Numeric
28	L2	Connection length (mm) EF022519 - Numeric
35	P2	Sleeve length (mm) EF010520 - Numeric
41	Q2	Length gusset/thread (mm) EF010521 - Numeric
47	RV2	Directional vector connection EF011005 - Coordinate
53	s2	Wall thickness connection (mm) EF010546 - Numeric
60		Connection EF000443 - Alphanumeric

Features port 3

04	CA3	Position connection (mm) EF011006 - Coordinate
14	DN3	Nominal diameter EF023191 - Alphanumeric
20	Do3	Outer pipe diameter connection output system (mm) EF025887 - Numeric
29	L3	Connection length (mm) EF022519 - Numeric
36	P3	Sleeve length (mm) EF010520 - Numeric
42	Q3	Length gusset/thread (mm) EF010521 - Numeric
48	RV3	Directional vector connection EF011005 - Coordinate
54	s3	Wall thickness connection (mm) EF010546 - Numeric
61		Connection EF000443 - Alphanumeric

Features port 4

05	CA4	Position connection (mm) EF011006 - Coordinate
15	DN4	Nominal diameter EF023191 - Alphanumeric
21	Do4	Outer pipe diameter connection output system (mm) EF025887 - Numeric
30	L4	Connection length (mm) EF022519 - Numeric
37	P4	Sleeve length (mm) EF010520 - Numeric
43	Q4	Length gusset/thread (mm) EF010521 - Numeric
49	RV4	Directional vector connection EF011005 - Coordinate
55	s4	Wall thickness connection (mm) EF010546 - Numeric
62		Connection EF000443 - Alphanumeric

Features port 5

06	CA5	Position connection (mm) EF011006 - Coordinate
16	DN5	Nominal diameter EF023191 - Alphanumeric
22	Do5	Outer pipe diameter tap water (mm) EF021084 - Numeric
31	L5	Connection length (mm) EF022519 - Numeric
38	P5	Sleeve length (mm) EF010520 - Numeric
44	Q5	Length gusset/thread (mm) EF010521 - Numeric
50	RV5	Directional vector connection EF011005 - Coordinate
56	s5	Wall thickness connection (mm) EF010546 - Numeric
63		Connection EF000443 - Alphanumeric

Features port 6

07	CA6	Position connection (mm) EF011006 - Coordinate
17	DN6	Nominal diameter EF023191 - Alphanumeric
23	Do6	Outer pipe diameter tap water (mm) EF021084 - Numeric
32	L6	Connection length (mm) EF022519 - Numeric
39	P6	Sleeve length (mm) EF010520 - Numeric
45	Q6	Length gusset/thread (mm) EF010521 - Numeric
51	RV6	Directional vector connection EF011005 - Coordinate
57	s6	Wall thickness connection (mm) EF010546 - Numeric
64		Connection EF000443 - Alphanumeric

Related productclasses

Synonyms

Heat pump floor (water/water)

Heat pump floor (water/water, floor positioning)
