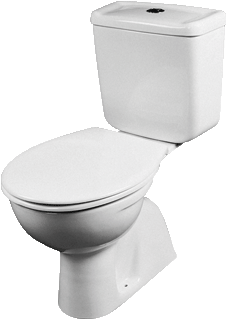

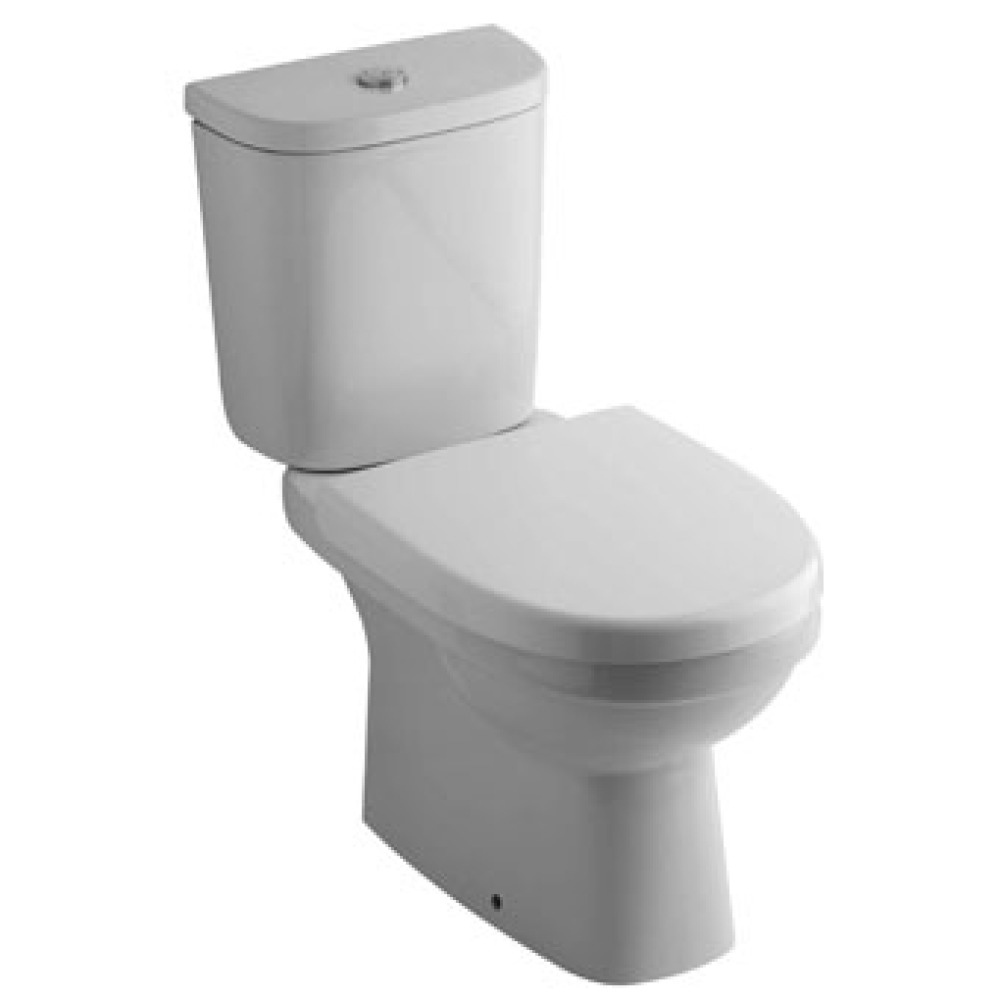

Toilet combination (floor standing)
Code
MC000269Version
Group
Water - Sanitary fixtures and appliances (MG000039)Release
Drawing
Features
01 | Type EF001139 - Alphanumeric | ||
02 | Outlet location EF020259 - Alphanumeric | ||
03 | Water connection, left EF020716 - Logical | ||
04 | Water connection, right EF020717 - Logical | ||
05 | Water connection, rear EF020718 - Logical | ||
10 | D | Depth (mm) EF000049 - Numeric | |
21 | H | Total height (mm) EF001761 - Numeric | |
22 | H1 | Toilet height (mm) EF020299 - Numeric | |
23 | H2 | Height to drain connection (mm) EF011433 - Numeric | |
24 | Le1 | Distance to centre connection (mm) EF010708 - Numeric | |
25 | Le2 | Length 2 (mm) EF021555 - Numeric | |
26 | Le3 | Distance to first fastening (mm) EF011434 - Numeric | |
27 | Le4 | Distance to second fastening (mm) EF011435 - Numeric | |
28 | Le5 | Depth reservoir (mm) EF011506 - Numeric | |
47 | W1 | Width reservoir (mm) EF011436 - Numeric | |
48 | W2 | Width toilet bowl (mm) EF011437 - Numeric | |
49 | W3 | Centre-to-centre holes (mm) EF010731 - Numeric | |
50 | W4 | Width 4 (mm) EF011000 - Numeric |
Features port 1
06 | CA1 | Position connection (mm) EF011006 - Coordinate | |
11 | DN1 | Nominal diameter EF023191 - Alphanumeric | |
16 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
29 | P1 | Sleeve length (mm) EF010520 - Numeric | |
33 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
38 | RV1 | Directional vector connection EF011005 - Coordinate | |
42 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
51 | Connection EF000443 - Alphanumeric |
Features port 2
07 | CA2 | Position connection (mm) EF011006 - Coordinate | |
12 | DN2 | Nominal diameter EF023191 - Alphanumeric | |
17 | Do2 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
30 | P2 | Sleeve length (mm) EF010520 - Numeric | |
34 | Q2 | Length gusset/thread (mm) EF010521 - Numeric | |
39 | RV2 | Directional vector connection EF011005 - Coordinate | |
43 | s2 | Wall thickness connection (mm) EF010546 - Numeric | |
52 | Connection EF000443 - Alphanumeric |
Features port 3
08 | CA3 | Position connection (mm) EF011006 - Coordinate | |
13 | DN3 | Nominal diameter EF023191 - Alphanumeric | |
18 | Do3 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
31 | P3 | Sleeve length (mm) EF010520 - Numeric | |
35 | Q3 | Length gusset/thread (mm) EF010521 - Numeric | |
40 | RV3 | Directional vector connection EF011005 - Coordinate | |
44 | s3 | Wall thickness connection (mm) EF010546 - Numeric | |
53 | Connection EF000443 - Alphanumeric |
Features port 4
09 | CA4 | Position connection (mm) EF011006 - Coordinate | |
14 | DN4 | Nominal diameter EF023191 - Alphanumeric | |
19 | Do4 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
32 | P4 | Sleeve length (mm) EF010520 - Numeric | |
36 | Q4 | Length gusset/thread (mm) EF010521 - Numeric | |
41 | RV4 | Directional vector connection EF011005 - Coordinate | |
45 | s4 | Wall thickness connection (mm) EF010546 - Numeric | |
54 | Connection EF000443 - Alphanumeric |
Features port 5
15 | DN5 | Nominal diameter EF023191 - Alphanumeric | |
20 | Do5 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
37 | Q5 | Length gusset/thread (mm) EF010521 - Numeric | |
46 | s5 | Wall thickness connection (mm) EF010546 - Numeric | |
55 | Connection EF000443 - Alphanumeric |
Related productclasses
Synonyms
Closet combination (floor standing)
Toilet combination (floor standing)
