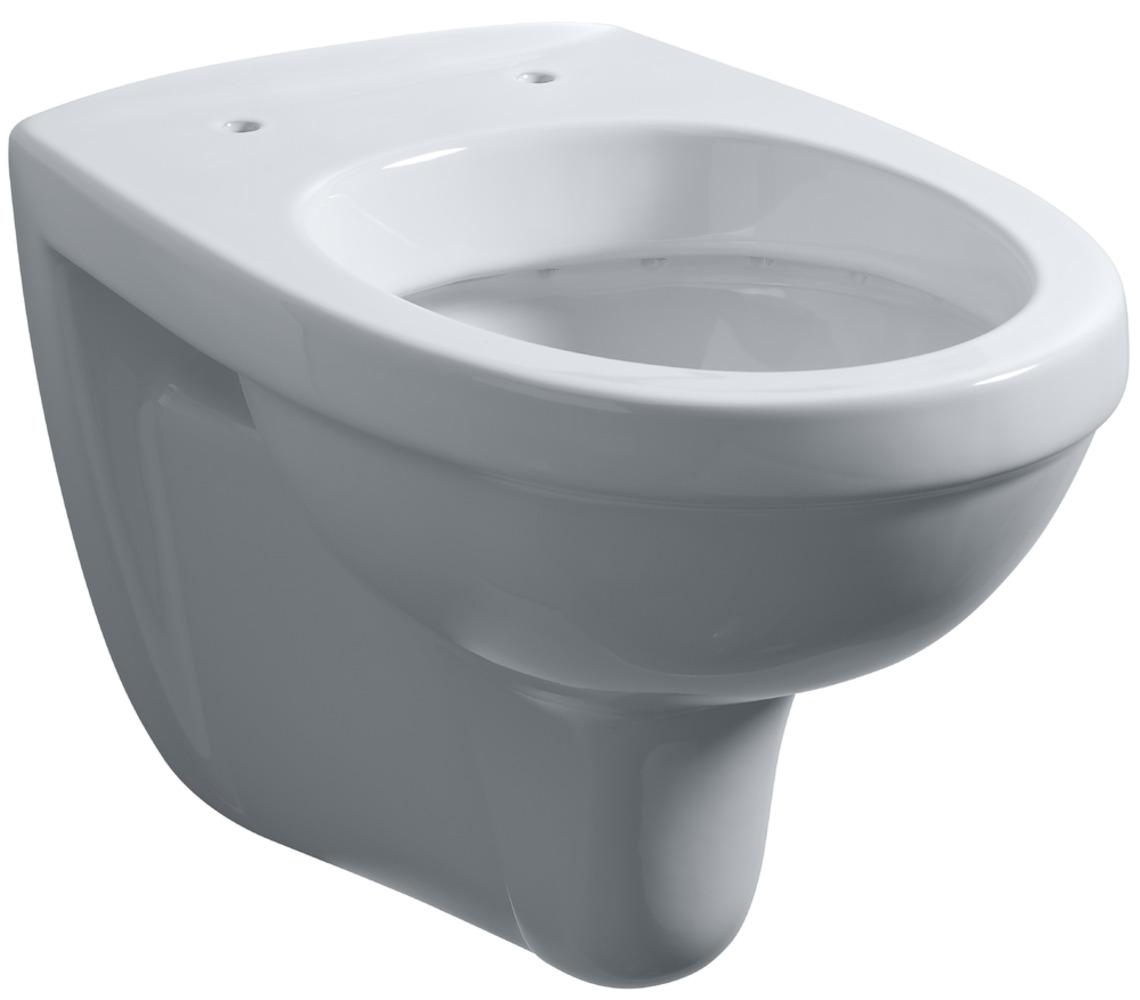

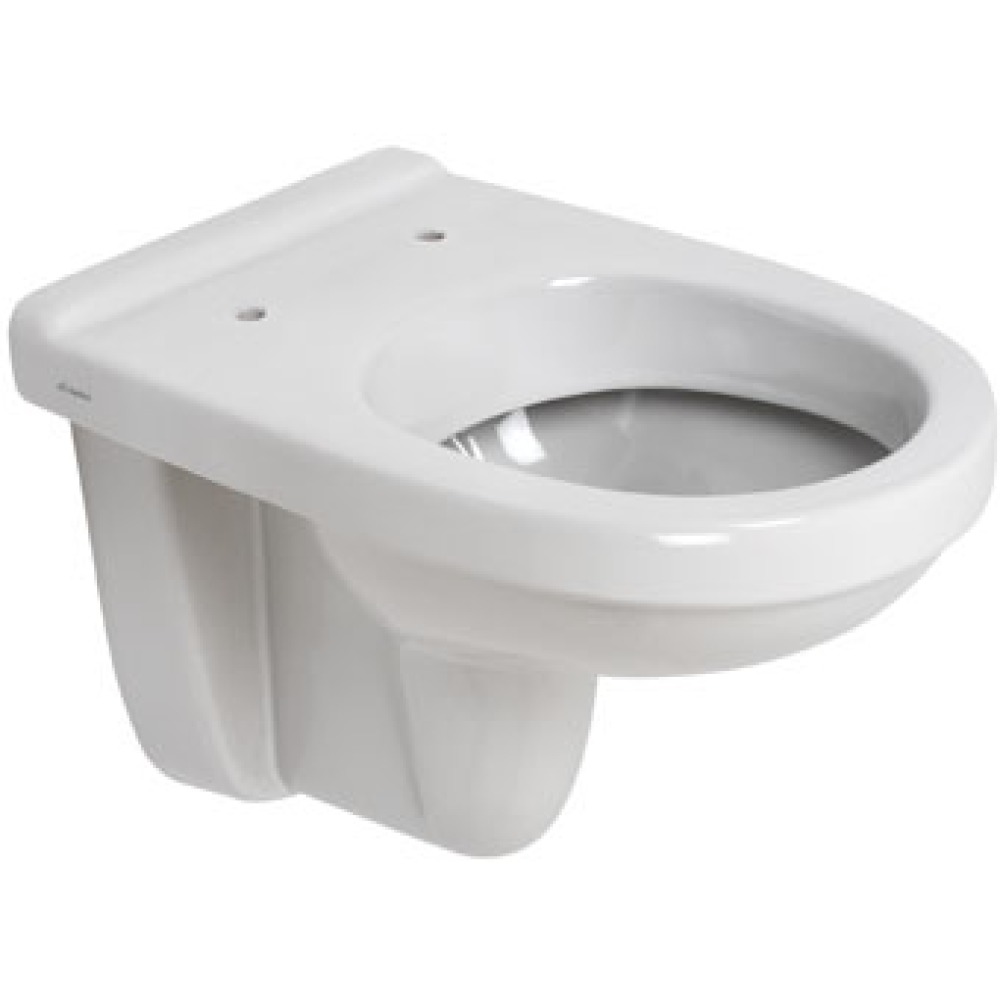

Toilet bowl (wall)
Code
MC000272Version
2
Group
Water - Sanitary fixtures and appliances (MG000039)Release
Drawing
Features
01 | Type EF001139 - Alphanumeric | ||
02 | Outlet location EF020259 - Alphanumeric | ||
03 | D | Depth (mm) EF000049 - Numeric | |
06 | DW | Diameter flushing water hole (mm) EF011438 - Numeric | |
07 | H | Height (mm) EF000040 - Numeric | |
08 | H2 | Height to centre suspension (mm) EF011442 - Numeric | |
09 | H3 | Height centre drain connection (mm) EF011440 - Numeric | |
10 | Le1 | Distance to drain connection (mm) EF011441 - Numeric | |
13 | W | Width (mm) EF000008 - Numeric | |
14 | W1 | Centre distance fastening wall-hung toilet (mm) EF021200 - Numeric |
Features port 1
04 | DN1 | Nominal diameter EF023191 - Alphanumeric | |
05 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
11 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
12 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
15 | Connection EF000443 - Alphanumeric |
Related productclasses
Synonyms
Closet (wall)
Toilet bowl (wall)
Toilet closet (wall)
