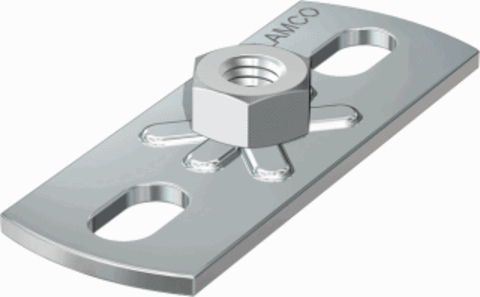

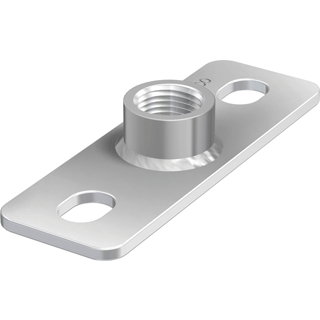

Base plate for bracket attachment
Code
MC000284Version
1
Group
Supports - Installation support hardware (MG000031)Release
Drawing
Features
01 | Shape EF000051 - Alphanumeric | ||
03 | Number of mounting holes EF001719 - Numeric | ||
05 | H | Height (mm) EF000040 - Numeric | |
06 | H1 | Height 1 (mm) EF010005 - Numeric | |
07 | L | Length (mm) EF001438 - Numeric | |
08 | W | Width (mm) EF000008 - Numeric |
Features port 1
02 | Connection facility EF020239 - Alphanumeric | ||
04 | D1 | Connection size, connection facility EF020294 - Alphanumeric |
Related productclasses
Synonyms
Base plate for bracket attachment
