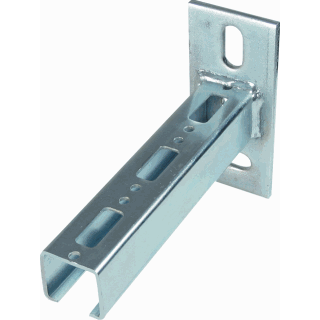

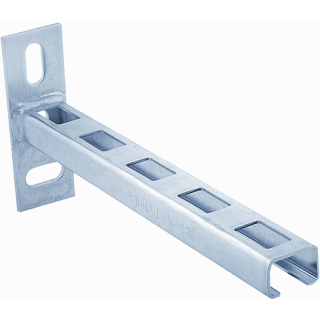

Rail console

Code

MC000285

Version

Group

Supports - Installation support hardware (MG000031)

Release

Drawing

Features

	01	H	Height mounting plate (mm) EF026087 - Numeric
	02	H1	Centre distance of mounting holes (mm) EF024851 - Numeric
	03	H2	Busbar height (mm) EF002639 - Numeric
	04	L	Length (mm) EF001438 - Numeric
	05	L1	Length 1 (mm) EF021554 - Numeric
	06	L2	Length 2 (mm) EF021555 - Numeric
	07	L3	Length 3 (mm) EF021750 - Numeric
	08	L4	Length 4 (mm) EF010951 - Numeric
	09	L5	Length 5 (mm) EF010961 - Numeric
	10	s1	Material thickness 1 (mm) EF011443 - Numeric
	11	s2	Material thickness 2 (mm) EF011444 - Numeric
	12	W	Width mounting plate (mm) EF021742 - Numeric
	13	W1	Rail width (mm) EF003704 - Numeric
	14	W2	Width 2 (mm) EF023088 - Numeric

Related productclasses

Synonyms

Rail console
