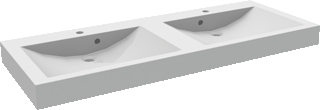

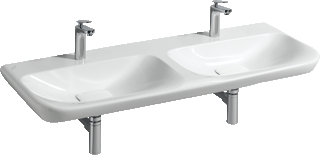

Washbasin double (hanging, rectangular)
Code
MC000288Version
2
Group
Water - Sanitary fixtures and appliances (MG000039)Release
Drawing
Features
01 | Shape EF000051 - Alphanumeric | ||
02 | Tap hole EF020361 - Alphanumeric | ||
03 | Punchable tap holes EF020708 - Alphanumeric | ||
04 | Number of washbasins EF021204 - Numeric | ||
05 | Number of usage locations EF020706 - Numeric | ||
06 | Mounting method EF000003 - Alphanumeric | ||
09 | D | Depth (mm) EF000049 - Numeric | |
10 | H | Height (mm) EF000040 - Numeric | |
11 | H2 | Height to centre suspension (mm) EF011442 - Numeric | |
14 | Le1 | Length to centre drain (mm) EF011466 - Numeric | |
15 | Le2 | Length to centre tap hole (mm) EF011467 - Numeric | |
16 | W | Width/diameter (mm) EF004567 - Numeric | |
17 | W1 | Distance to first tap hole (mm) EF011468 - Numeric | |
18 | W2 | Distance to second tap hole (mm) EF011469 - Numeric | |
19 | W3 | Edge washbasin to centre first drain (mm) EF011473 - Numeric | |
20 | W4 | Edge washbasin to centre second drain (mm) EF011474 - Numeric | |
21 | W5 | Centre-to-centre suspension (mm) EF011481 - Numeric |
Features port 1
07 | AG1 | Diameter of drain hole (mm) EF020710 - Numeric | |
12 | L1 | Connection length (mm) EF022519 - Numeric |
Features port 2
08 | AG2 | Diameter of drain hole (mm) EF020710 - Numeric | |
13 | L2 | Connection length (mm) EF022519 - Numeric |
Related productclasses
Synonyms
Washbasin double (hanging, rectangular)
