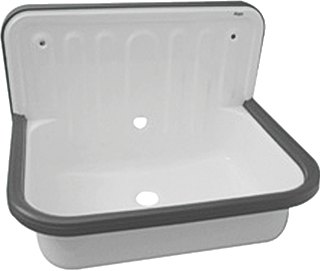

Slop sink

Code

MC000290

Version

Group

Water - Sanitary fixtures and appliances (MG000039)

Release

Drawing

Features

	01		With raised rear side EF022236 - Logical
	03	D	Depth (mm) EF000049 - Numeric
	04	H	Height (mm) EF000040 - Numeric
	05	H1	Height back-plate (mm) EF011482 - Numeric
	06	H2	Height to centre suspension (mm) EF011442 - Numeric
	08	Le1	Length to centre drain (mm) EF011466 - Numeric
	09	Le2	Thickness back-plate (mm) EF011483 - Numeric
	10	W	Width (mm) EF000008 - Numeric
	11	W1	Centre-to-centre suspension (mm) EF011481 - Numeric

Features port 1

	02	AG	Diameter of drain hole (mm) EF020710 - Numeric
	07	L1	Connection length (mm) EF022519 - Numeric

Related productclasses

Synonyms

Slop sink
