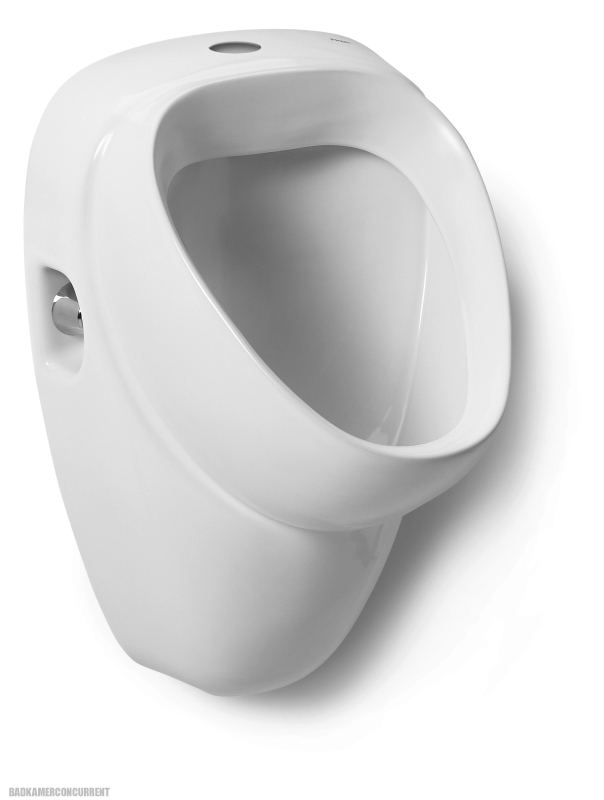

Urinal (above-rear connection) MC000292

Published
Water - Sanitary fixtures and appliances MG000039

Features 18

Class features

  1. 1

    ModelEF000010

    Choose one value

    Wall
  2. 2

    Flushing water connectionEF020816

    Choose one value

    Top
  3. 3

    Drain connectionEF021710

    Choose one value

    Covered (rear)
  4. 4

    DepthEF000049

    A number in mm · D in drawing

  5. 7

    Diameter flushing water holeEF011438

    A number in mm · DW in drawing

  6. 8

    HeightEF000040

    A number in mm · H in drawing

  7. 9

    Height 1EF010005

    A number in mm · H1 in drawing

  8. 10

    Height to centre suspensionEF011442

    A number in mm · H2 in drawing

  9. 11

    Height centre drain connectionEF011440

    A number in mm · H3 in drawing

  10. 12

    Distance to drain connectionEF011441

    A number in mm · Le1 in drawing

  11. 13

    Distance to flushing water connectionEF011484

    A number in mm · Le2 in drawing

  12. 16

    WidthEF000008

    A number in mm · W in drawing

  13. 17

    Centre-to-centre suspensionEF011481

    A number in mm · W1 in drawing

Port 1

  1. 5

    Nominal diameterEF023191

    Choose one value · DN1 in drawing

    DN 40DN 50
  2. 6

    Outer pipe diameter connectionEF020208

    A number in mm · Do1 in drawing

  3. 14

    Length gusset/threadEF010521

    A number in mm · Q1 in drawing

  4. 15

    Wall thickness connectionEF010546

    A number in mm · s1 in drawing

  5. 18

    ConnectionEF000443

    Choose one value

    Drain
