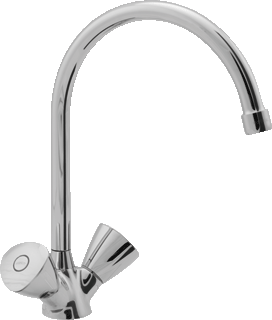

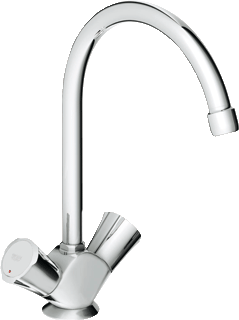

Mixing tap with high outlet (two-grip)

Code

MC000296

Water - Sanitary fittings (taps and mixers) (MG000038)

Drawing

Features

01		Number of grips EF020780 - Alphanumeric
02		With grips EF020799 - Logical
03		Mounting method EF000003 - Alphanumeric
04		Number of tap holes EF021808 - Alphanumeric
05		Spout model EF020795 - Alphanumeric
08	D	Diameter tap housing (mm) EF011491 - Numeric
13	H	Total construction height (mm) EF020796 - Numeric
14	H1	Construction height, underside of tap nozzle (mm) EF020797 - Numeric
17	Le1	Spout overhang length (mm) EF020789 - Numeric
26	W1	Width 1 (mm) EF023087 - Numeric

Features port 1

06	C1	Height screw gland (mm) EF010040 - Numeric
09	DN1	Connection size supply EF020785 - Alphanumeric
11	Do1	Outer pipe diameter connection (mm) EF020208 - Numeric
15	L1	Connection length (mm) EF022519 - Numeric
18	P1	Sleeve length (mm) EF010520 - Numeric
20	Q1	Length gusset/thread (mm) EF010521 - Numeric
22	s1	Wall thickness connection (mm) EF010546 - Numeric
24	SLW1	Wrench width (mm) EF000177 - Numeric
27		Connection supply EF002286 - Alphanumeric

Features port 2

07	C2	Height screw gland (mm) EF010040 - Numeric
10	DN2	Connection size supply EF020785 - Alphanumeric
12	Do2	Outer pipe diameter connection (mm) EF020208 - Numeric
16	L2	Connection length (mm) EF022519 - Numeric
19	P2	Sleeve length (mm) EF010520 - Numeric
21	Q2	Length gusset/thread (mm) EF010521 - Numeric
23	s2	Wall thickness connection (mm) EF010546 - Numeric
25	SLW2	Wrench width (mm) EF000177 - Numeric
28		Connection supply EF002286 - Alphanumeric

Related productclasses

Synonyms

Kitchen mixing tap with high outlet (two-grip)

Mixing tap with high outlet (two-grip)

Washbasin mixing tap with high outlet (two-grip)
