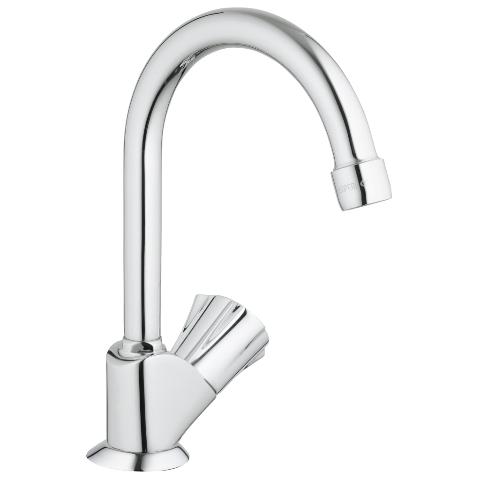

Toilet tap (rotatable outlet)
Code
MC000298Version
2
Group
Water - Sanitary fittings (taps and mixers) (MG000038)Release
Drawing
Features
01 | Mounting method EF000003 - Alphanumeric | ||
02 | Number of tap holes EF021808 - Alphanumeric | ||
03 | Spout model EF020795 - Alphanumeric | ||
06 | D | Diameter tap housing (mm) EF011491 - Numeric | |
11 | H | Total construction height (mm) EF020796 - Numeric | |
12 | H1 | Construction height, underside of tap nozzle (mm) EF020797 - Numeric | |
15 | Le1 | Spout overhang length (mm) EF020789 - Numeric | |
24 | W1 | Width 1 (mm) EF023087 - Numeric |
Features port 1
04 | C1 | Height screw gland (mm) EF010040 - Numeric | |
07 | DN1 | Connection size supply EF020785 - Alphanumeric | |
09 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
13 | L1 | Connection length (mm) EF022519 - Numeric | |
16 | P1 | Sleeve length (mm) EF010520 - Numeric | |
18 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
20 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
22 | SLW1 | Wrench width (mm) EF000177 - Numeric | |
25 | Connection supply EF002286 - Alphanumeric |
Features port 2
05 | C2 | Height screw gland (mm) EF010040 - Numeric | |
08 | DN2 | Connection size supply EF020785 - Alphanumeric | |
10 | Do2 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
14 | L2 | Connection length (mm) EF022519 - Numeric | |
17 | P2 | Sleeve length (mm) EF010520 - Numeric | |
19 | Q2 | Length gusset/thread (mm) EF010521 - Numeric | |
21 | s2 | Wall thickness connection (mm) EF010546 - Numeric | |
23 | SLW2 | Wrench width (mm) EF000177 - Numeric | |
26 | Connection supply EF002286 - Alphanumeric |
Related productclasses
Synonyms
Toilet tap (rotatable outlet)
