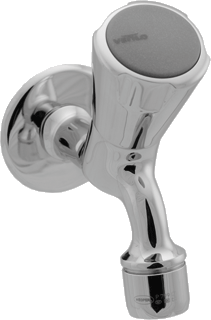

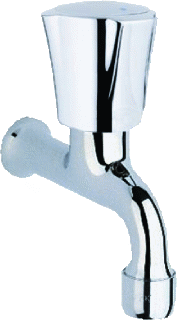

Water tap
Code
MC000305Version
2
Group
Water - Sanitary fittings (taps and mixers) (MG000038)Release
Drawing
Features
01 | Operation EF002147 - Alphanumeric | ||
02 | Mounting method EF000003 - Alphanumeric | ||
03 | With spout EF020788 - Logical | ||
04 | Spout model EF020795 - Alphanumeric | ||
05 | With handle EF005050 - Logical | ||
08 | H1 | Distance to outlet (mm) EF011499 - Numeric | |
09 | H2 | Height to top side handle (mm) EF011492 - Numeric | |
10 | Le1 | Spout overhang length (mm) EF020789 - Numeric |
Features port 1
06 | DN1 | Connection size supply EF020785 - Alphanumeric | |
07 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
11 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
12 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
13 | Connection EF000443 - Alphanumeric |
Related productclasses
Synonyms
Water tap
