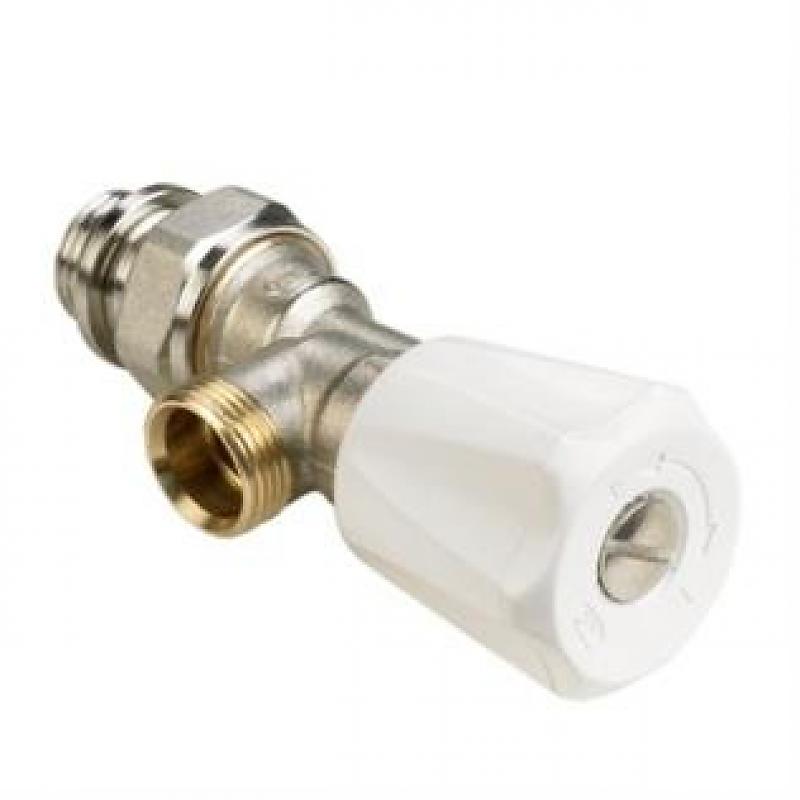

Radiator stop valve (Wrong right-angled with button)
Code
MC000330Version
2
Group
Hydronic - Valves and control components (MG000042)Release
Drawing
Features
01 | Model EF000010 - Alphanumeric | ||
02 | Shape EF000051 - Alphanumeric | ||
03 | Operation EF002147 - Alphanumeric | ||
06 | DK | Diameter button (mm) EF010383 - Numeric | |
11 | L | Length (mm) EF001438 - Numeric | |
12 | Le1 | Length button (mm) EF011564 - Numeric | |
13 | Le2 | Distance to button (mm) EF011565 - Numeric | |
14 | Le3 | Length to gland nut (mm) EF010764 - Numeric |
Features port 1
04 | C1 | Height screw gland (mm) EF010040 - Numeric | |
07 | DN1 | Size of radiator connection EF021250 - Alphanumeric | |
09 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
15 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
17 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
19 | SLW1 | Wrench width (mm) EF000177 - Numeric | |
21 | Z1 | Working length connection 1 (mm) EF020153 - Numeric | |
23 | Connection EF000443 - Alphanumeric |
Features port 2
05 | C2 | Height screw gland (mm) EF010040 - Numeric | |
08 | DN2 | Size of pipe connection EF021187 - Alphanumeric | |
10 | Do2 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
16 | Q2 | Length gusset/thread (mm) EF010521 - Numeric | |
18 | s2 | Wall thickness connection (mm) EF010546 - Numeric | |
20 | SLW2 | Wrench width (mm) EF000177 - Numeric | |
22 | Z2 | Working length connection 2 (mm) EF020154 - Numeric | |
24 | Connection EF000443 - Alphanumeric |
Related productclasses
Synonyms
Radiator stop valve (wrong right-angled with button)
